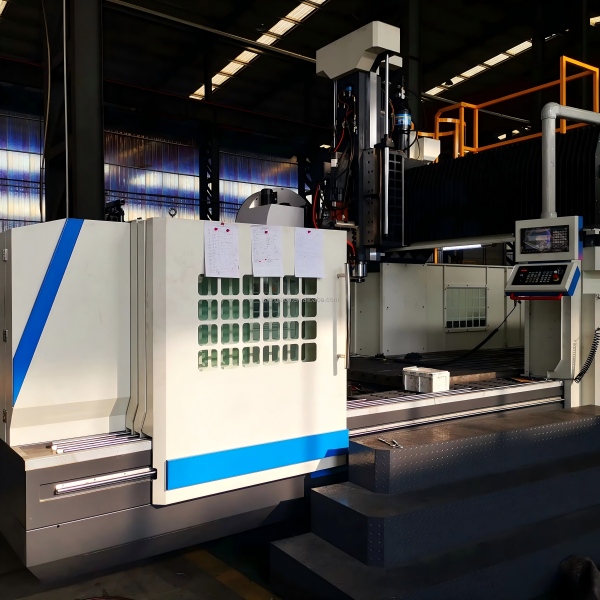

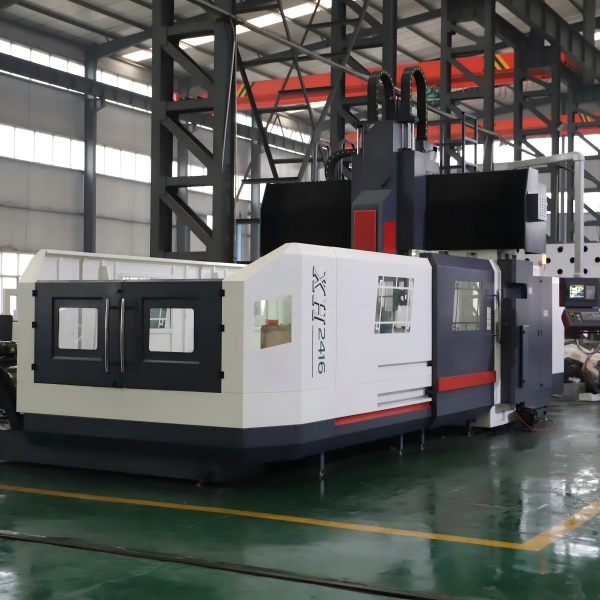

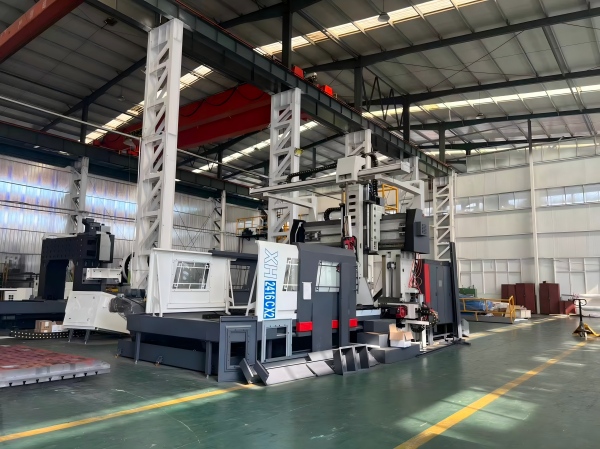

CNC gantry milling machine adopts a gantry‑type frame composed of double columns and crossbeam. The worktable is fixed or moves longitudinally, while the milling head carries out transverse and vertical feed along the crossbeam. As core equipment for large‑size and heavy‑duty parts machining, it is widely used in mold manufacturing, engineering machinery, energy equipment, aerospace, shipbuilding and other industries, solving tough processing challenges of heavy‑cutting and multi‑operation composite machining for large workpieces.
Two mainstream types: fixed‑beam gantry milling machine and moving‑beam gantry milling machine.
Configurations include 3‑axis, 4‑axis and 5‑axis gantry milling machines. Right‑angle milling heads and universal milling heads can be equipped to realize side and inclined hole machining.
The gantry frame with double columns is integrally cast with excellent bending and torsion resistance. Vibration is well suppressed during cutting. For hard materials such as cast steel, cast iron and thick steel plates, it supports heavy‑depth and high‑feed aggressive milling. It delivers good surface finish and longer tool service life, with minimal accuracy drift during long‑time mass production.
It provides spacious working travel and heavy‑load worktable, capable of clamping and processing extra‑large castings, steel plates and welded structural parts in single setup. No need to split large workpieces for segmented machining, greatly improving part overall dimensional consistency.
One‑clamp multi‑process machining including milling, drilling, boring, tapping can be completed. Secondary re‑clamping is reduced to lower positioning error. Optional accessories such as rotary table, universal milling head and A/C axis realize 4‑axis / 5‑axis simultaneous machining to handle complex curved surfaces.
Open gantry structure brings convenient workpiece loading and unloading. Large‑size parts can be hoisted onto the worktable by crane. It adapts to single‑piece custom production as well as batch processing.
Thick cast bed and reinforced gantry structure effectively absorb cutting shock. Thermal deformation is well‑controlled. It maintains stable dimensional accuracy for long‑hour continuous operation, meeting strict tolerance requirements for heavy‑industry components.
Mold base, large mold, engineering machinery structural parts, energy equipment parts, ship components, automation equipment frames, thick plate processing, large welded parts.
Q1: What is the difference between fixed‑beam and moving‑beam gantry milling machine?
A: Fixed‑beam type has constant beam height with better rigidity and lower maintenance cost, suitable for most regular large‑size workpieces. Moving‑beam type supports beam lifting for taller parts, yet its structure is more complex with higher purchase cost.
Q2: Can a 3‑axis gantry machine process inclined surfaces?
A: Standard 3‑axis model can not machine inclined surfaces directly. You need to add a universal milling head or upgrade to 4‑axis / 5‑axis configuration for inclined surface and complex curved‑surface machining.
Q3: What material can gantry milling machine process?
A: It works for cast iron, cast steel, carbon steel, alloy steel, aluminum alloy and other metal materials. It is widely used for heavy‑cutting of large‑size metal workpieces.
Q4: What factors affect gantry milling machine machining accuracy?
A: Main factors include casting rigidity, guideway & ball screw quality, spindle performance, machine thermal condition and workpiece clamping method. Regular maintenance is also essential to keep long‑term accuracy.
Q5: Is gantry milling machine suitable for small‑part mass production?
A: Not recommended. Gantry machines are designed for large‑size workpieces. Small‑part mass production is more cost‑effective with vertical machining centers.
