C6266/6280 High-precision Automatic Horizontal Metal Universal Lathe Machine

C6266/6280 High-precision Automatic Horizontal Metal Universal Lathe Machine

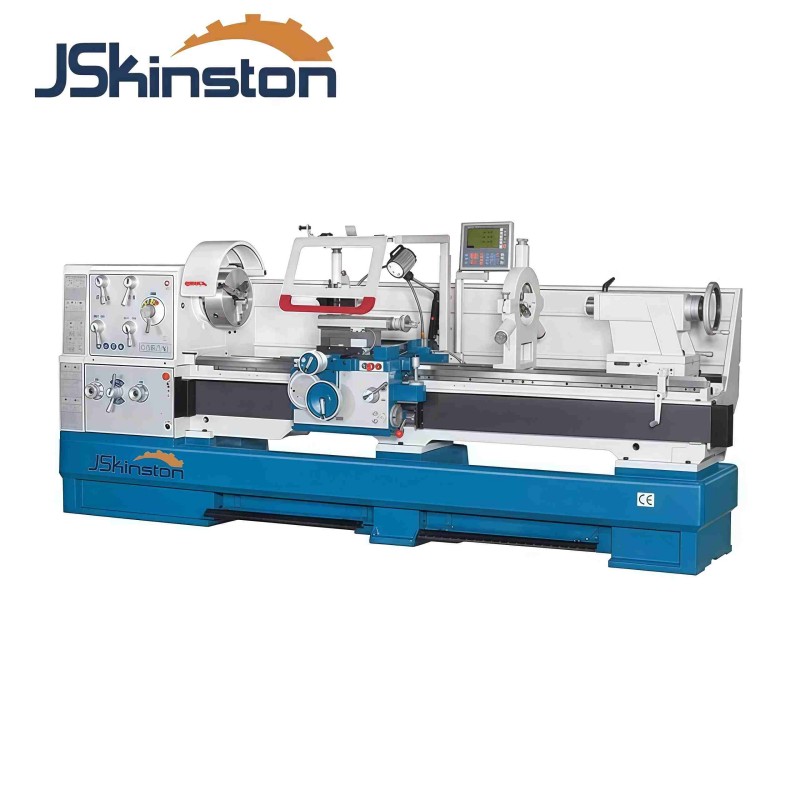

The C6266 and C6280 are heavy-duty horizontal lathes designed for industrial-scale turning operations, offering exceptional rigidity, powerful cutting capability, and high precision for demanding manufacturing environments. These machines are part of the universal gap bed lathe series, widely used in general machinery manufacturing, automotive parts production, oil equipment processing, and heavy repair workshops.

الطلب (الحد الأدنى للكمية) :
1
منشأ المنتج :
China
ميناء الشحن :
Shanghai
مهلة :
40
وزن :
4495kg

استفسر الآن

Heavy Duty Precision Industrial Horizontal Lathe

The main difference between the two models lies in their swing capacity: the C6266 offers a maximum swing over bed of 660mm (approximately 26 inches), while the C6280 provides an even larger 800mm (approximately 31.5 inches) swing capacity. Both models feature a gap bed design that allows for machining oversized workpieces when the gap section is removed.

Applications:
1.General machinery manufacturing: Production of machine tool components, transmission shafts, and structural parts.
2.Automotive and truck industry: Machining of axles, gear blanks, and heavy-duty drivetrain components.
3.Oil and gas equipment: Processing of drill pipe connectors, valve bodies, and pipeline fittings.
4.Heavy repair workshops: Reconditioning of large shafts, rollers, and industrial machinery components.
5.Railway and shipbuilding: Machining of locomotive axles, rudder stocks, and propeller shafts.

specification


Specification	Model
	C6266	C6280
Swing over bed	660mm(26")	800mm(31-1/2”)
Swing over cross slide	440mm(17-5/16")	570mm(22-716”)
Swing in gap diameter	900mm(35-7/16")	1035mm(40-314")
Distance between centers	1500mm(60") 2000mm(80”) 3000mm(120")	1500mm(60”) 2000mm(80”) 3000mm(120)
Valid length of gap	250mm(10")
Width of bed	400mm(15-13/16")
Spindle nose	D1-8
Spindle bore	105mm(4-1/8”)
Taper of spindle bore	113(120)
Range of spindle speed	25~1600 r/min
Compound rest travel	230mm(9-1/8”)
Cross slide travel	368mm(14-1/2”)	420mm(16-17/32”)
Max,section of tool	25×25mm(1”×1")
Lead screw thread	12mm or 2T.P.I
Longitudinal feeds range	0.044~1.48mmirev (0.00165”~0.0550°/rev)
Cross feeds range	0.022-0.74mmrev (0.00083-0.02774"/rev)
Threads metric ptches	54 kinds,0.45~120mm
Threads imperial pitches	54 kinds,716-80T.P.I.
Threads diametral pitches	42 kinds,78～160DP
Threads module pitches	46 kinds,0.25～60MP
Quill iameter	90mm(3-1/2")
Quill ravel	235mm(9-14")
Quil taper	No.5 Morse
Main motor power	7.5KW(10HP)3PH
Coolant pump power	0.1kW(1/8HP)3PH
Overall dimension(L×W×H)	321×123×160cm 371×123×160cm 471×123×160cm	321×123×167cm 371×123×167cm 471×123×167cm
Packing size(L×W×H)	324×114×184cm 374×114×184cm 474×114×184cm	324×114×191cm 374×114×191cm 474×114×191cm
Net weight	3065kg 3345kg 3710kg	3175kg 3455kg 3820kg
Gross weight	3535kg 3835kg 4310kg	3695kg 4005kg 4495kg

product introduction

Massive Spindle Bore for Large-Diameter Bar Work
Both models offer a large spindle bore of 105mm or 130mm (optional) , allowing thick bar stock to pass directly through the spindle for continuous machining of large-diameter shafts and pipes. This feature significantly improves efficiency in batch production of heavy-duty components.
Wide Bed for Superior Rigidity
The extra-wide, hardened and ground guideways provide exceptional rigidity and wear resistance, ensuring long-term accuracy even under continuous heavy-duty cutting conditions. The robust cast iron construction effectively dampens vibration, delivering superior surface finish quality.
Complete Thread Cutting Capability
Equipped with a precision thread cutting gearbox, both models can produce a full range of metric, inch, modulus, and diametral pitch threads, meeting diverse industrial threading requirements. The thread dial indicator allows for convenient inch and metric thread cutting operations.

JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD

Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose us

Community charging overall solution covers all application

Mature And Stable Technology
With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
Support Customized Solutions
We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
Complete After-sales Service
We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service.Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

our certification

Authoritative Certifications, Stable and Reliable Quality.

Manual Lathe

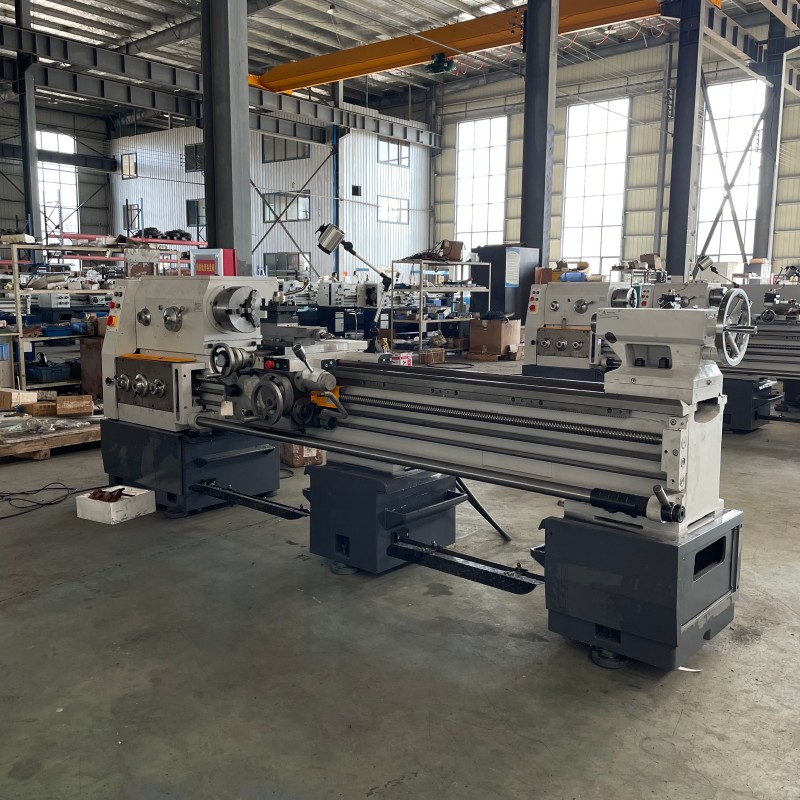

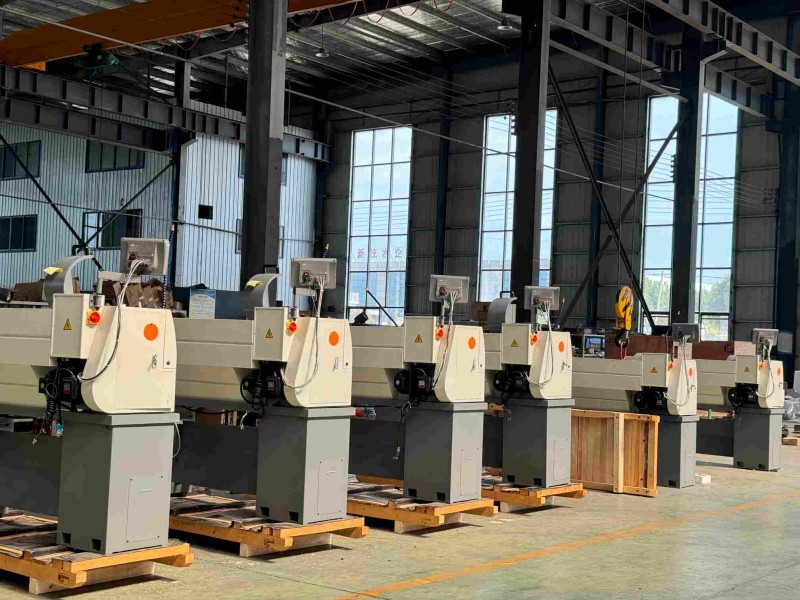

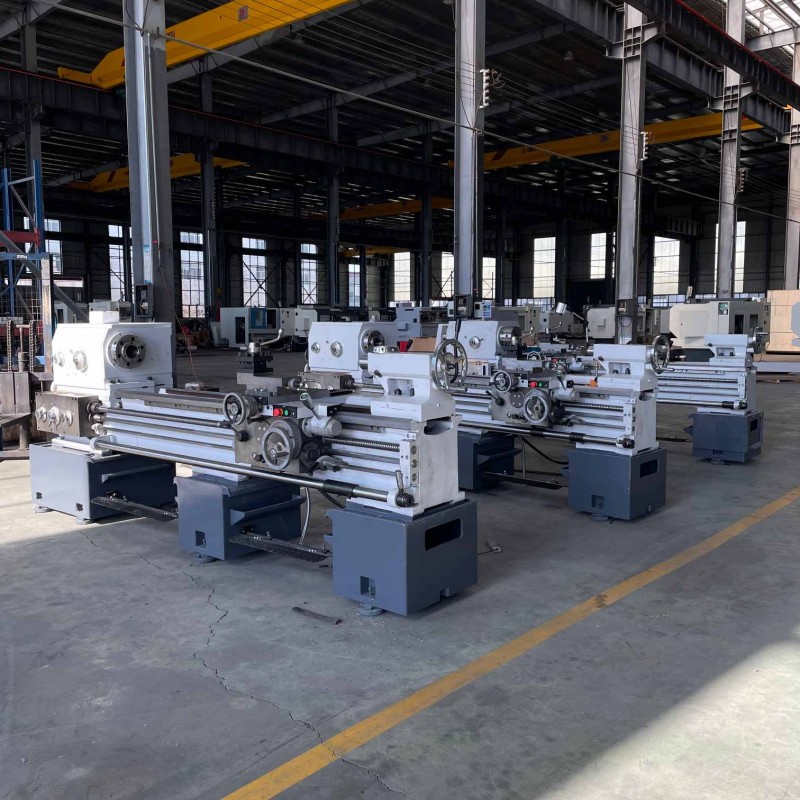

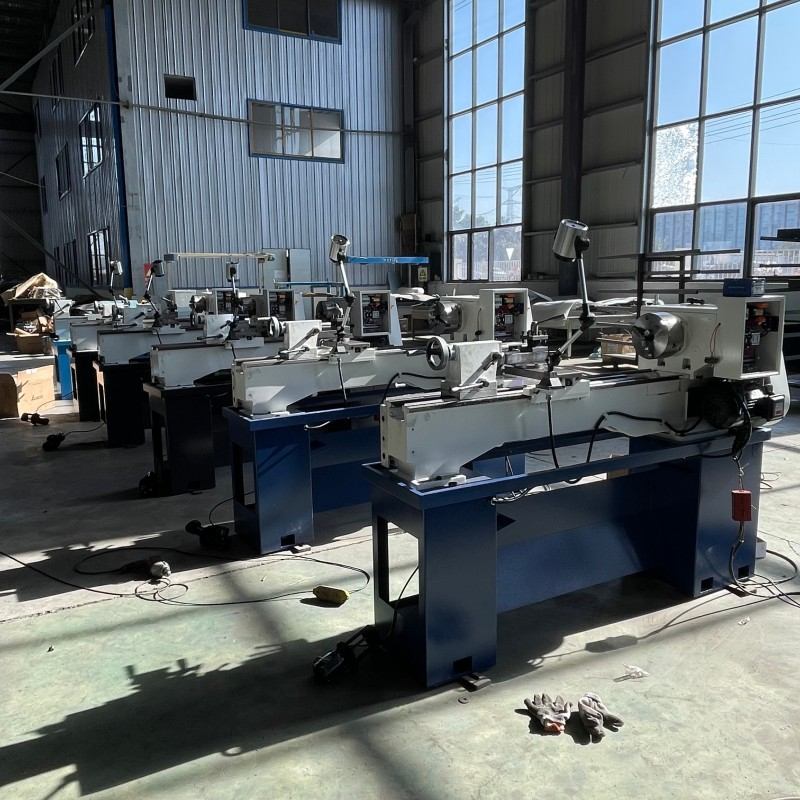

factory show

Professional Production Base, Strength in Precision Manufacturing

motor gear lathe high-accuracy lathe competitive price lathe 1000mm centers lathe

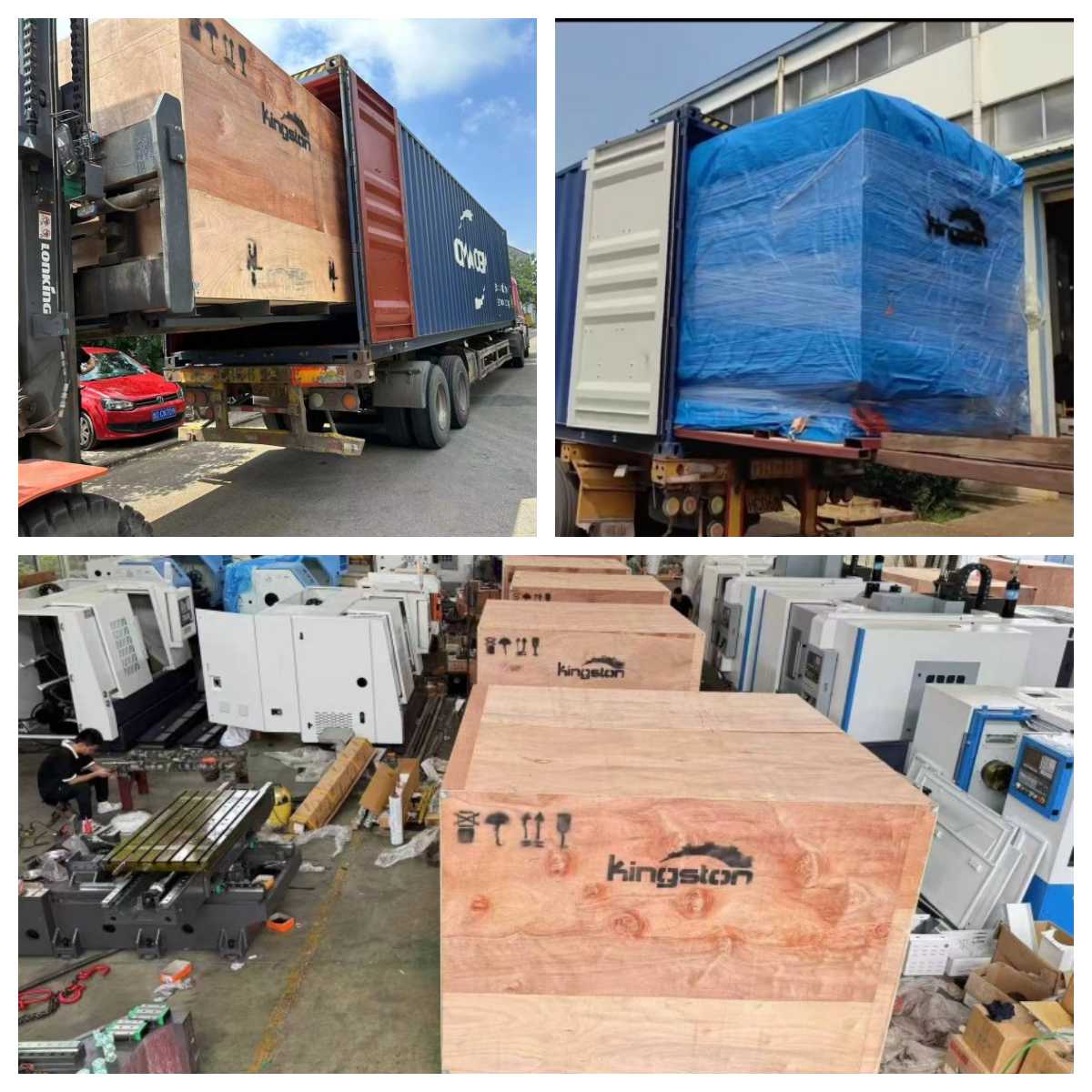

Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed

horizontal metal lathe
Heavy machinery manufacturer

1.What comes with the standard machine?

The standard C6266 package typically includes: 3-jaw chuck (400mm), 4-jaw chuck, face plate, dead centers (Morse Taper 5/6), chuck guard, splash guard, tool post, tool box with standard wrenches, steady rest, and follow rest. Please check with us for the exact accessory list as configurations may vary.

2.What safety features does the C6266 include?

The C6266 includes essential safety features such as an emergency stop button, chuck safety guard, splash guard, and electrical overload protection. Optional features such as a full-length splash guard or foot brake may also be available depending on configuration.

3.How long is the warranty period of this product?

We provide one-year warranty for the industrial universal lathe.

4.What is the MOQ and delivery time of the lathe?

MOQ 1 set, delivery in 40 working days after advance payment.

5.What materials can the C6266 lathe machine?

The C6266 is designed for heavy-duty machining of various materials including carbon steel, alloy steel, stainless steel, cast iron, aluminum, and non-ferrous metals. Its all-geared headstock delivers high torque at low speeds, making it ideal for hard material cutting and heavy stock removal.
