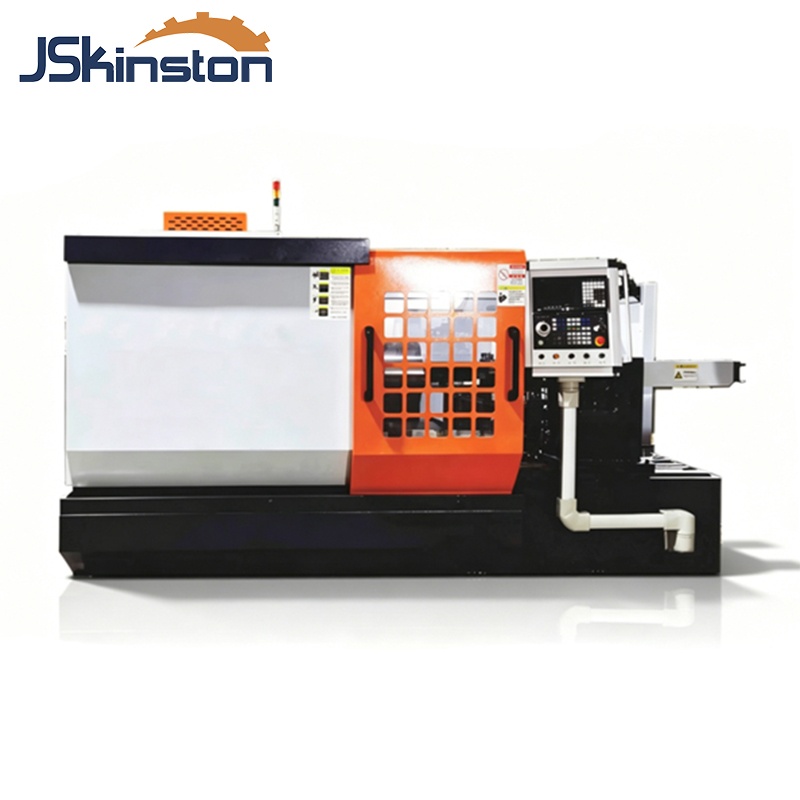

Factory Direct Metal Spinning Machine

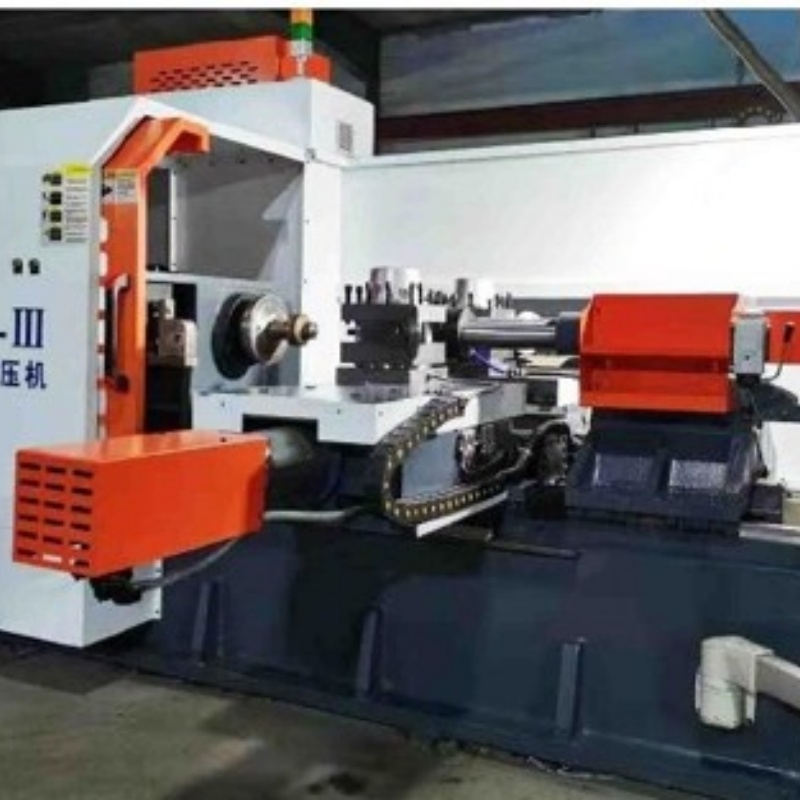

High Efficiency Metal Forming Machine
VAV Venturi Tube Spinning Lathe

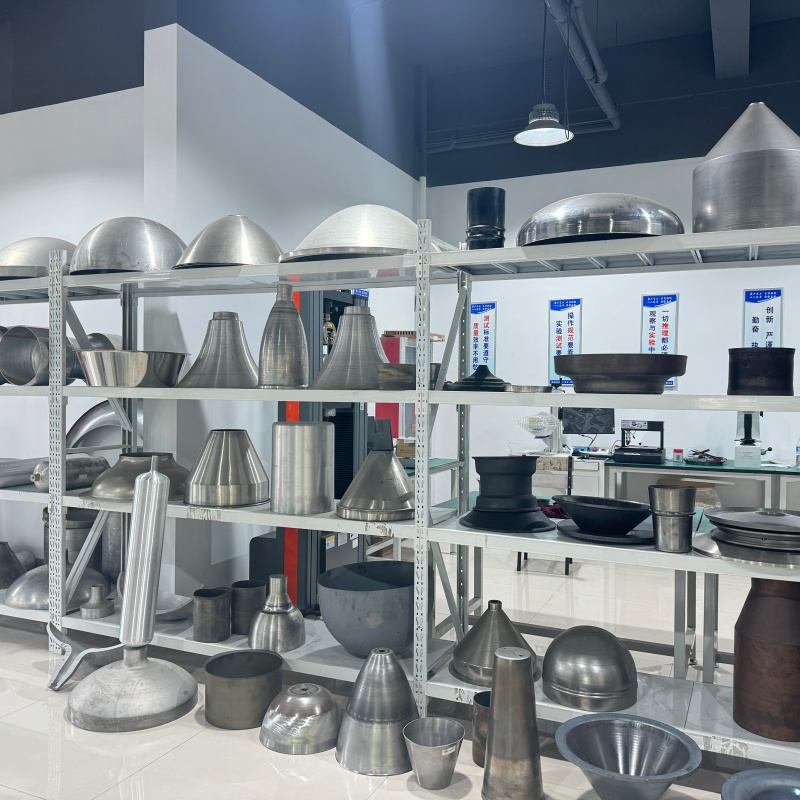

Cookware Pot Pan Spinning Machine

KST1280HP-I High Power CNC Metal Spinning Machine For Pressure Vessel

The KST1280HP-I is an industrial heavy-duty high-power CNC spinning machine, specially engineered for thick-wall metal blanks and large-diameter rotary component forming.This heavy-duty spinning unit adopts fully reinforced welded frame with secondary stress relief treatment, delivering powerful hydraulic spinning pressure that far exceeds standard light spinning equipment.

  • الطلب (الحد الأدنى للكمية) :

    1

  • منشأ المنتج :

    China

  • لون :

    Customized

  • ميناء الشحن :

    Shanghai

  • مهلة :

    30
استفسر الآن


KST1280HP-I High Power CNC Metal Spinning Machine For Pressure Vessel

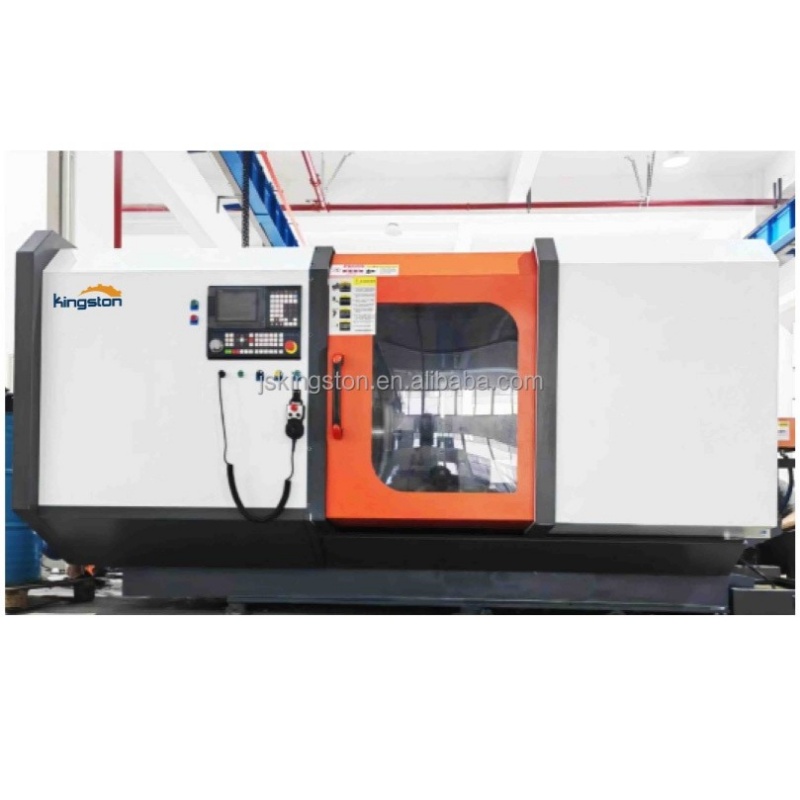

KST1280HP-I High Power Spinning Lathe

Built with stress-relief heavy welded frame and high-torque spindle, this multi-axis servo CNC spinning machine outputs strong hydraulic pressure for integrated necking, flanging and curve spinning. It supports cold & optional hot spinning for alloy steel, stainless steel and aluminum, ideal for pressure vessel heads, fan cones and auto parts. Equipped with overload protection and programmable storage, it guarantees uniform wall thickness and stable precision for mass batch production.

specification

Project

Data

Model specifications

KST1280HP-I

Maximum sheet diameter

1280mm

Overrunning plate barrel diameter

800mm

Main motor power

30Kw

Spindle speed

1000Rpm

Itinerary

Axis

1250mm

Axis

800mm

Maximum tail thrust

15Kn

Tail thrust stroke

500mm



Processing material thickness

Copper and aluminum materials

0.5-5.0mm

Steel

0.5-4.Qmm

Stainless steel

05-2.5mm

Tool holder station

4/8

Wafer blank tray travel

300mm

Positioning accuracy

0.02mm

Product Advantages

JIANGSU  KINGSTON  MACHINE  TOOLS GROUP    CO.,LTD
Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.





Why choose us

  • # Mature And Stable Technology
    With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
  • # Support Customized Solutions
    We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
  • # Complete After-sales Service
    We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service.Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

Our certification

Authoritative Certifications, Stable and Reliable Quality.

Certificate



factory show

Professional Production Base, Strength in Precision Manufacturing

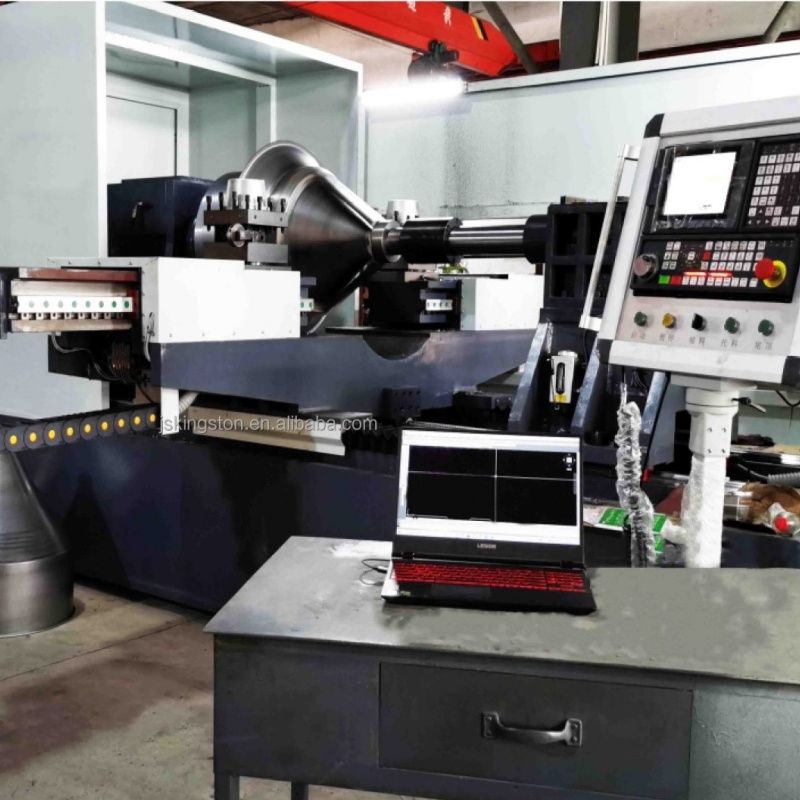

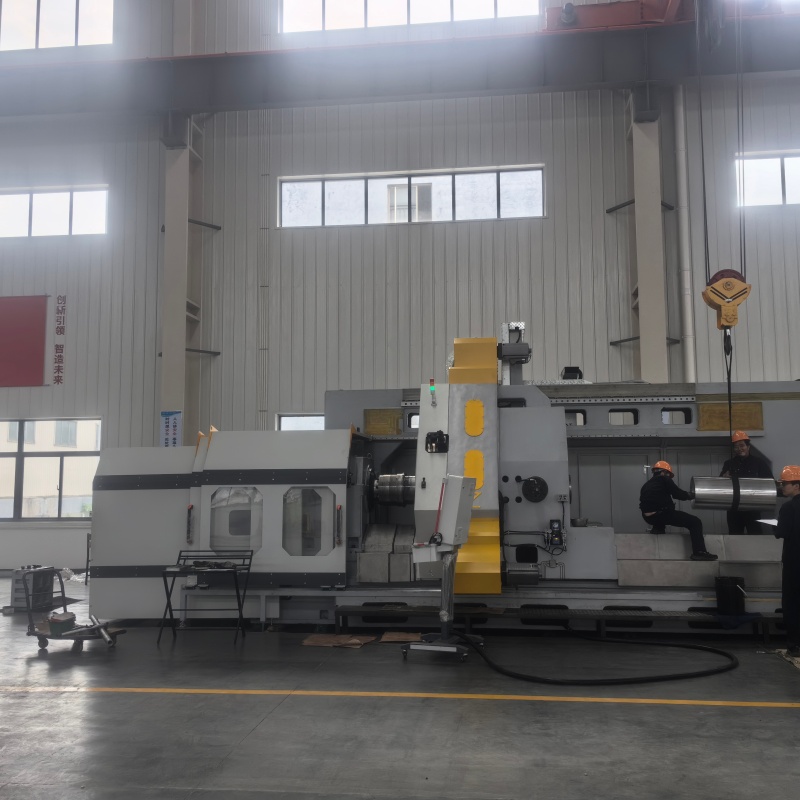

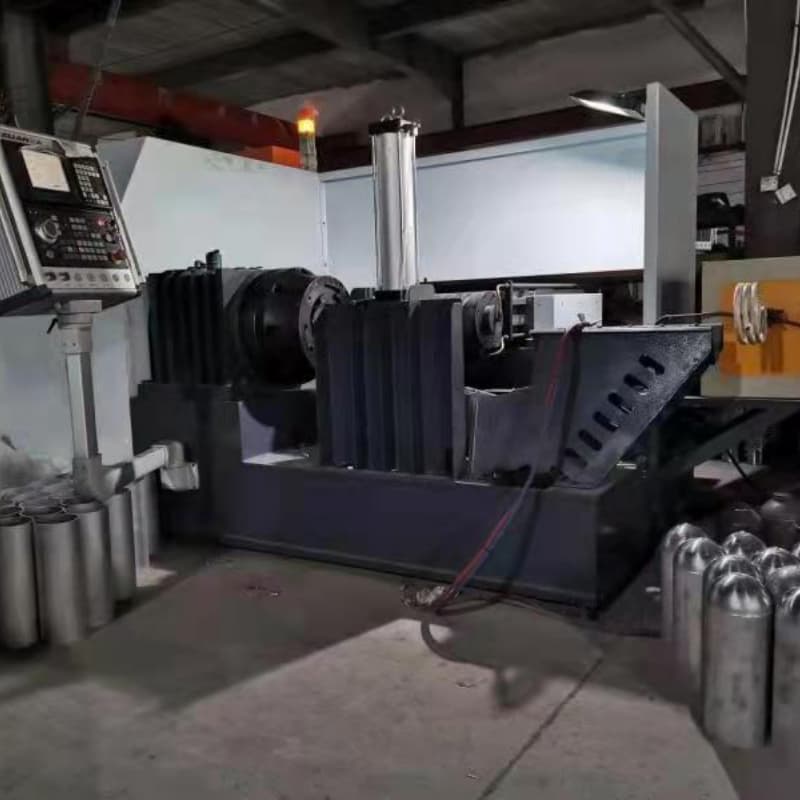

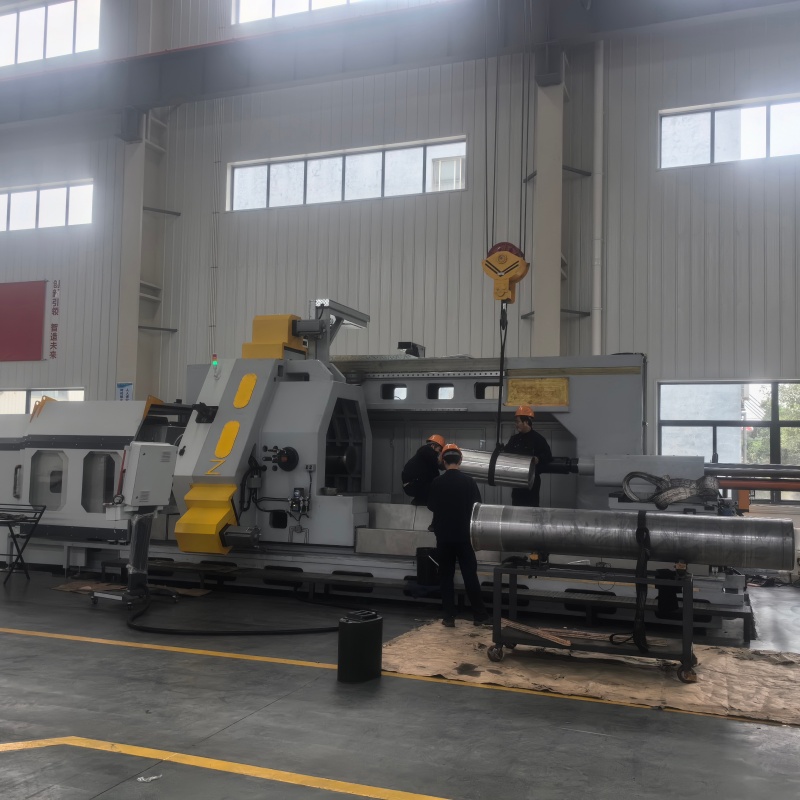

Multi Roller High Power Spinning MachineOne Step Seamless Metal FormingThick Plate Spinning Forming EquipmentMulti-Axis CNC Precision Spinning Machine



Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed

Multifunctional machine manufacturerHeavy machinery manufacturer





FAQ

1. Q: Why is this a high-power spinning model for pressure vessels?

A: Equipped with heavy hydraulic drive and large spinning force, it handles thick steel blanks for high-pressure tank forming.

2. Q: What pressure vessel parts can it produce?

A: Ellipsoidal heads, hemispherical caps, cylinder bottom closures and tank neck sections.

3. Q: What’s the advantage of spinning over stamping & welding?

A: No welding seams, uniform wall thickness, higher structural strength and better pressure resistance.

4. Q: What metals can the machine process?

A: Carbon steel, alloy steel, stainless steel and thick aluminum alloy for industrial pressure tanks.

5. Q: Can it store multiple production programs?

A: Yes, save parameter files for different tank sizes, fast switching for mass mixed production.
