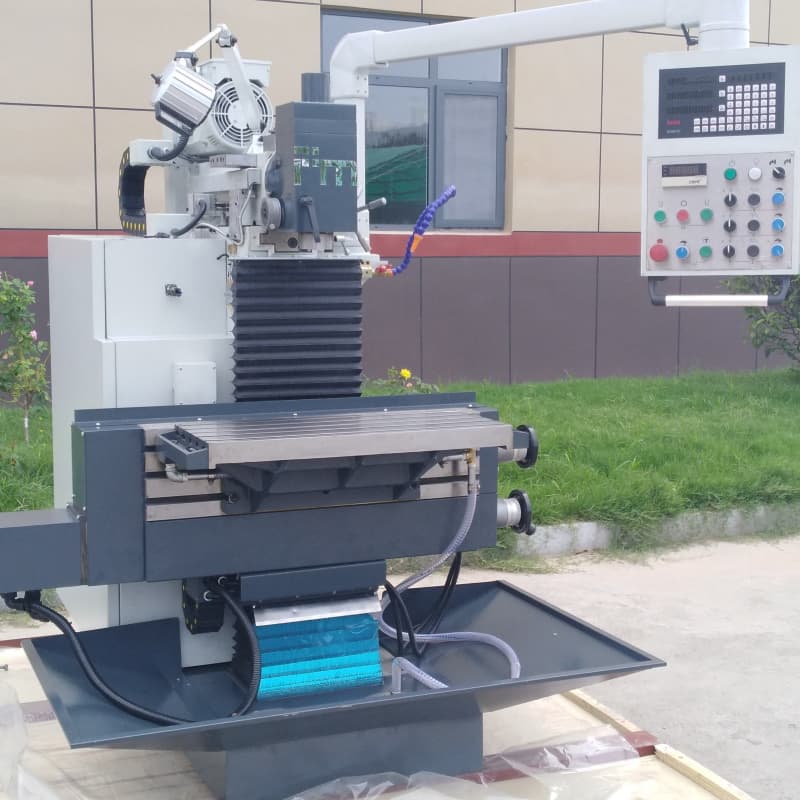

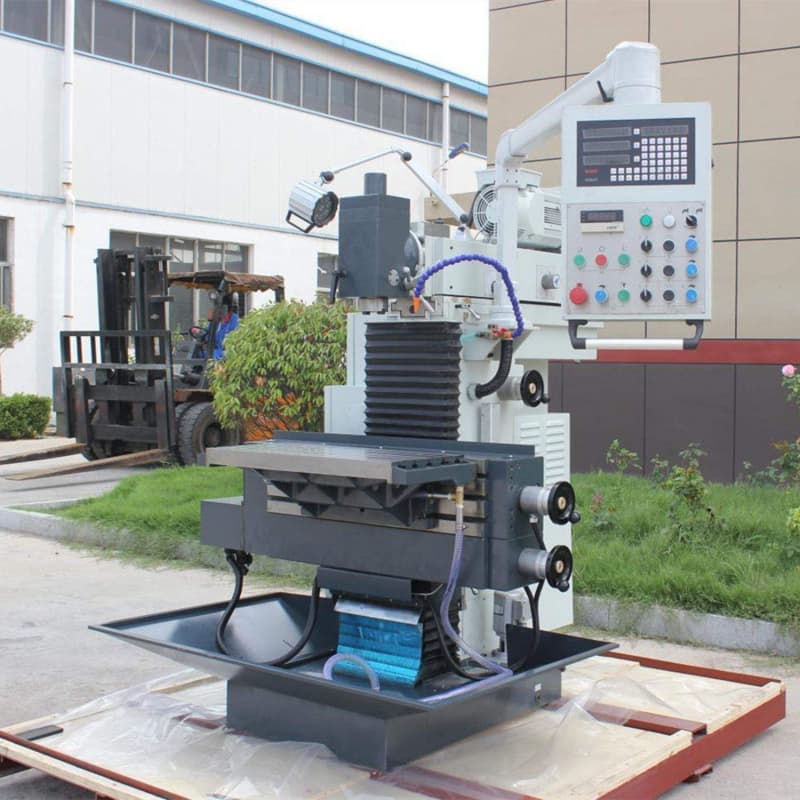

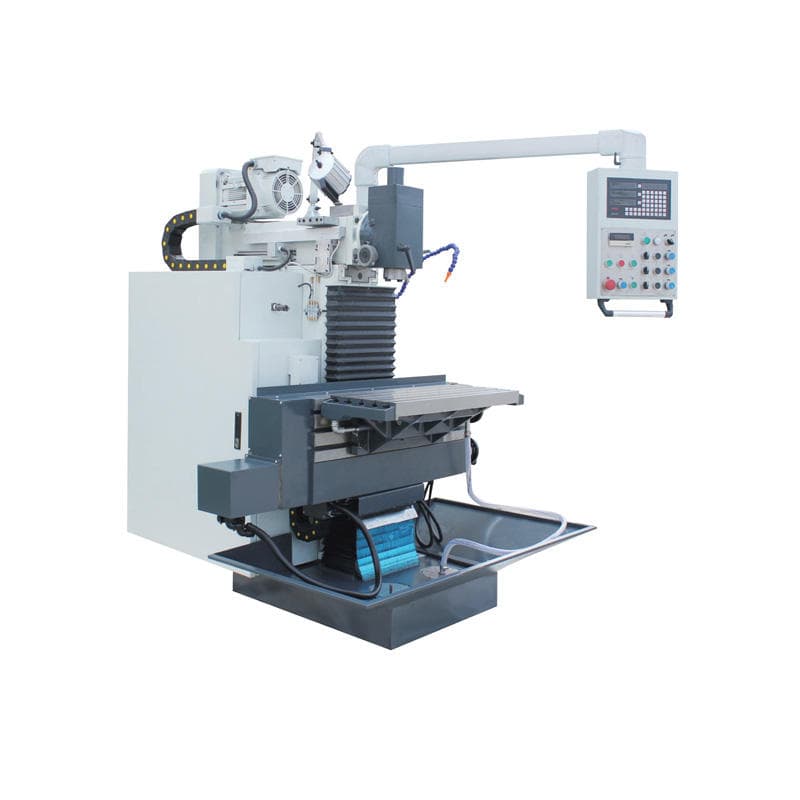

Universal Heavy Duty XL8132/8140/8145 Tool Milling Machine

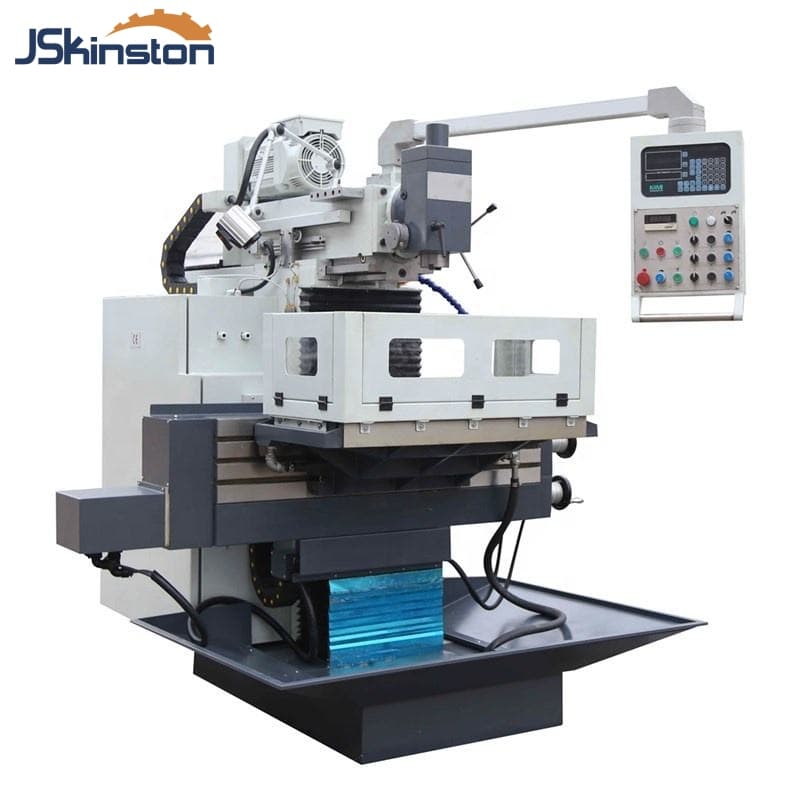

Tool Milling Machine With Reducing Sleeves

Universal Heavy Duty XL8132/8140/8145 Tool Milling Machine

Tool milling machines are versatile general-purpose machine tools widely utilized in mechanical workshops, tool rooms and maintenance departments. Designed for comprehensive cutting tasks, this type of machine covers standard milling, drilling, slotting and contour machining, and works well on metals, plastics and other common engineering materials. Thanks to flexible operation and reliable mechanical accuracy, it serves as essential equipment for tool fabrication, parts repairing, prototype development and small batch customized processing across multiple industries.

الطلب (الحد الأدنى للكمية) :
1
منشأ المنتج :
China
لون :
Customized
ميناء الشحن :
Qingdao
مهلة :
30
وزن :
1450Kg

استفسر الآن

Universal Heavy Duty XL8132/8140/8145 Tool Milling Machine

Built with solid cast iron base and high-precision transmission parts, this tool milling machine maintains stable running accuracy and low vibration during daily processing. Its adjustable spindle speed and humanized travel control greatly improve processing flexibility for different materials and complex craft tasks. With reliable mechanical performance and easy daily maintenance, it has become essential general-purpose equipment for machinery workshops, technical schools and small processing factories.

specification

Specification	Unit	XL8132	XL8140	XL8145
Horizontal table size(L×W)	mm	750x320	800x400	850×450
T-slots(pc'sizecenter distance)	mm	51463	61463	71463
Verical table size(L×W)	mm	890×225	1020x225	1190x250
T-slots(pc'sizecenter distance)	mm	31463	31463	31463
Max.table load	kg	160	200	300
XM/Z axes travel	mm	405/305/400	500/400/400	600/450/450

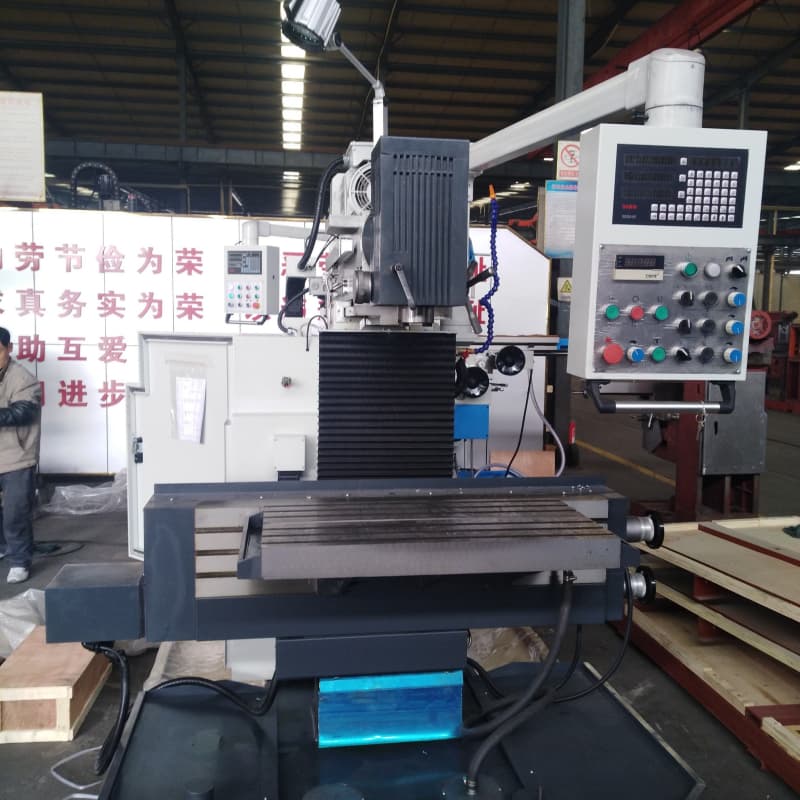

Spindle taper(H.&V.)	-	NT40	NT40	NT40
Spindle speeds(H.&V.,variable)	rpm	40-2000	40-2000	40-2000
Stroke of vertical spindle quill	mm	60	60	60
Feed rate(XY/Z axes)	mm/min	10-1000	10-1000	10-1000
Rapid traverse(XY/Z axes)	mm/min	1200	1200	1200
Main motor power	Kw	3.7	3.7	5.5
Feed motor torque(XN/Z axes)	Nm	7.7.710	7.77.7/10	10/10/15
Machine Weight	kg	1450	1550	1750
Machine dimensions(L×W×H)	mm	1500x1700x1800	1500x1700x1800	1600x1800x2000

Product Advantages

Multifunctional Processing
Supports milling, drilling and composite machining to meet various workshop processing requirements.
Rigid Cast Iron Structure
Heavy-duty body effectively weakens working vibration and guarantees long-term processing stability.
User-Friendly Operation
Intuitive manual control design, easy to operate and suitable for long-time daily wor

JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD

Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose us

Community charging overall solution covers all application

Mature And Stable Technology
With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
Support Customized Solutions
We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
Complete After-sales Service
We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service. Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

Our certification

Authoritative Certifications, Stable and Reliable Quality.

vertical milling machine

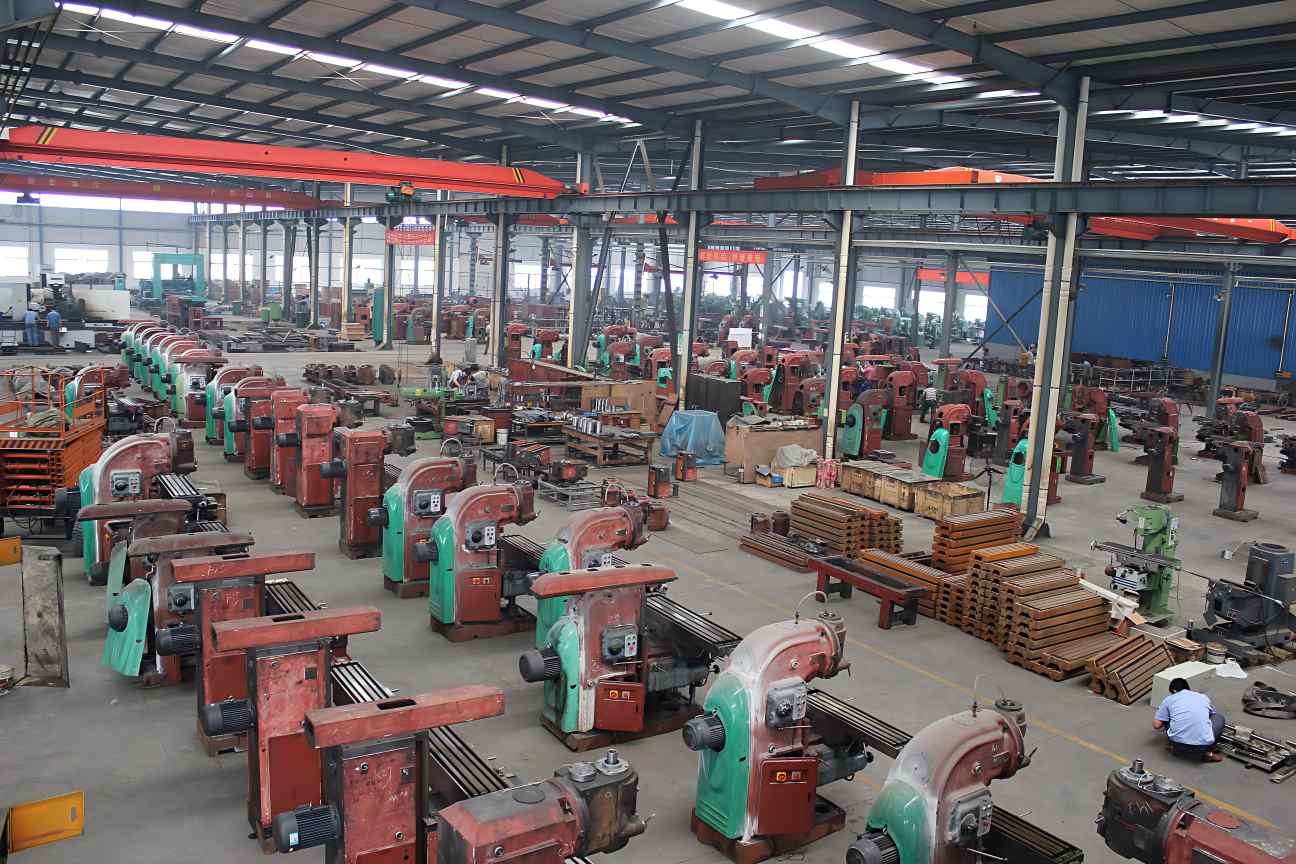

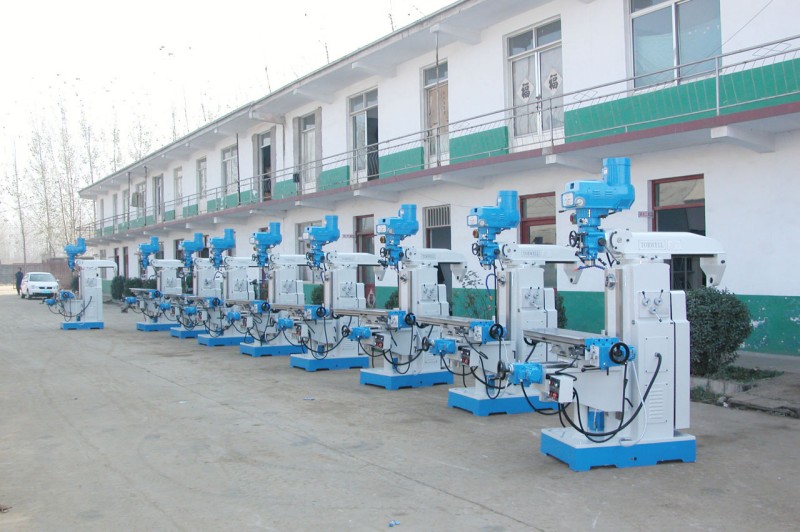

factory show

Professional Production Base, Strength in Precision Manufacturing.

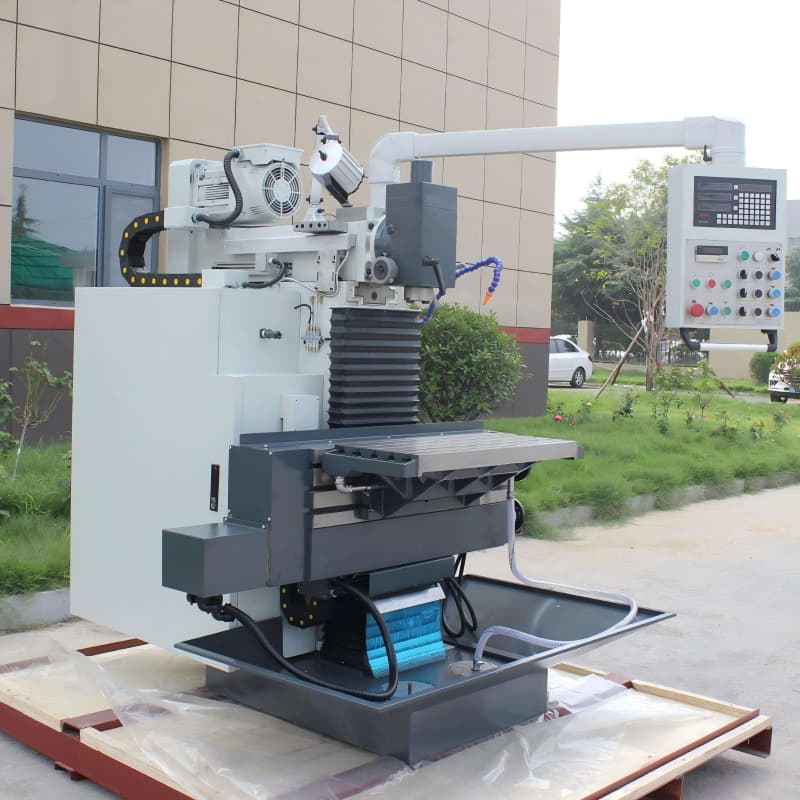

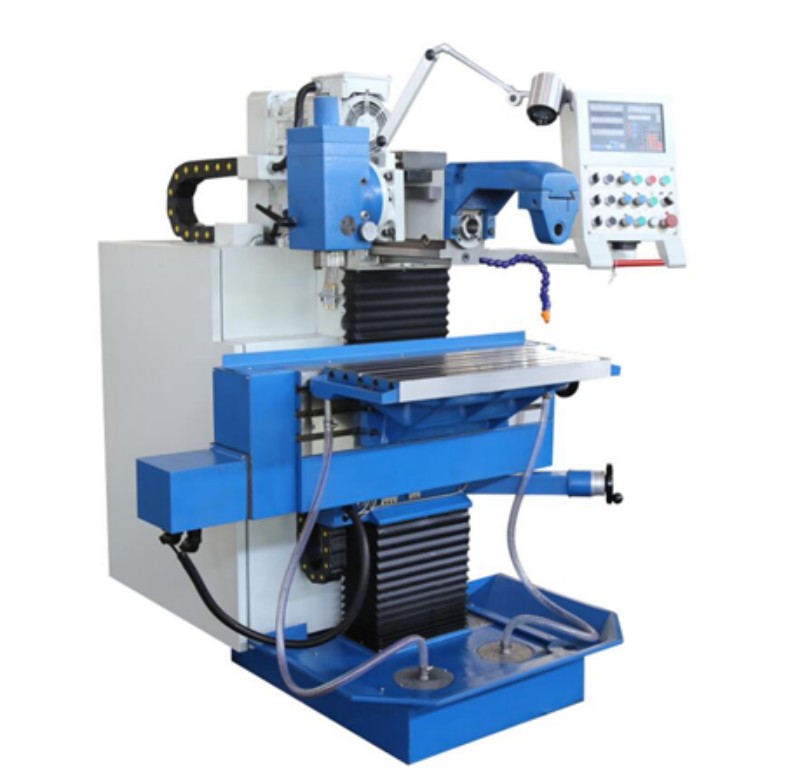

Drilling milling machine Universal Tool Milling Machine

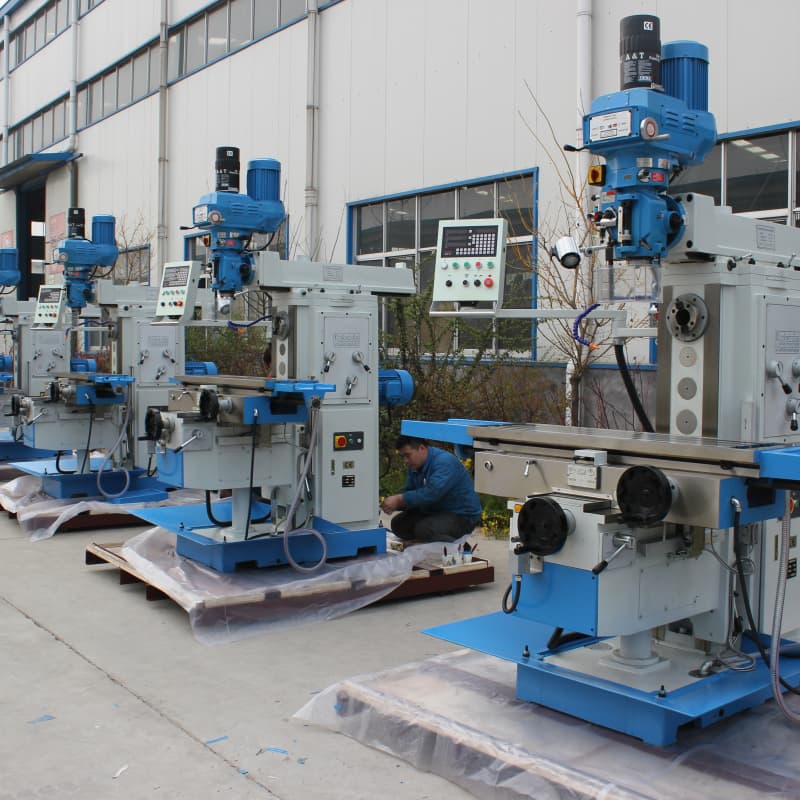

cnc Milling machine for metal factory

Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed

mini horizontal milling machine

packing

Q: What are the main applications of the tool milling machine?

A: It is widely used for tool making, fixture processing, small batch parts, slotting, drilling and precision trimming work.
Q: What are the structural features of the tool milling machine?

A: It adopts rigid overall structure, stable bed and flexible head design, ensuring high stability during manual and precision milling.
Q: Is the tool milling machine easy to operate for general workers?

A: It features simple mechanical operation, intuitive control and easy adjustment, no complicated programming required for daily processing.
Q: What materials can the tool milling machine process?

A: It can process iron, aluminum, copper, plastic and common mold materials, meeting multi-purpose workshop processing needs.
Q: What advantages does this tool milling machine have over ordinary milling machines?

A: It has higher processing flexibility, accurate manual feeding and strong versatility, perfect for maintenance and customized small parts production.
