The CK6132 and CK6140 are flat bed CNC lathes designed for efficient, high-precision turning of small to medium-sized workpieces. These models are widely used in general machining shops, automotive parts manufacturing, hydraulic component production, and vocational training environments. The key difference between the two lies in their swing capacity: the CK6132 offers a swing over bed of 320mm (approx. 12.6 inches) , while the CK6140 provides a larger 400mm (approx. 15.75 inches) swing capacity. Both feature a traditional flat bed construction that delivers excellent rigidity and stability for consistent machining results.
الطلب (الحد الأدنى للكمية) :
1منشأ المنتج :
Chinaميناء الشحن :
Shanghaiمهلة :
40وزن :
1700kgFeatures

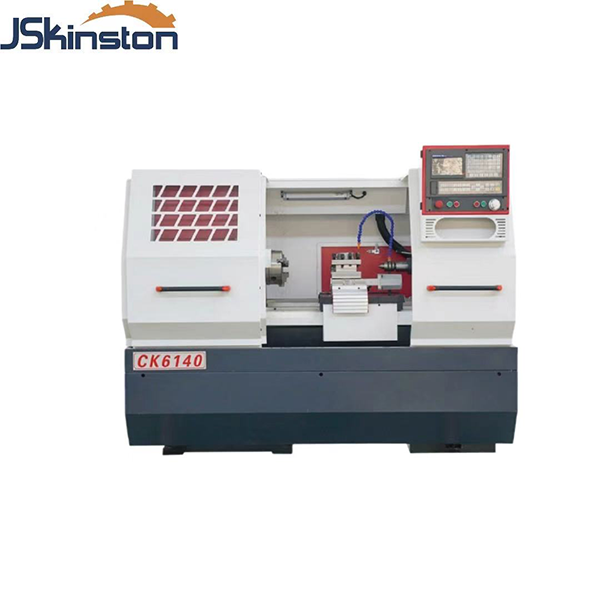

CK6132/6140 Flat Bed CNC Lathe
The CK6132 and CK6140 flat bed CNC lathes offer an affordable, reliable, and easy-to-use entry into automated precision turning. With their rigid flat bed construction, precision ground guideways, and user-friendly CNC controls, these machines deliver consistent accuracy for small to medium parts without the complexity or cost of high-end slant bed designs. Whether you are a small workshop owner, a vocational trainer, or a maintenance technician, the CK6132 and CK6140 provide the perfect balance of capability, simplicity, and value.
Applications:
1.Small parts manufacturing: Shafts, bushings, pins, bolts, nuts, and fittings.
2.Hydraulic components: Valve stems, cylinder rods, and connector bodies.
3.Automotive repair and parts: Brake components, suspension parts, and engine fittings.
4.General job shops: Custom parts, prototypes, and repair work.
specification
|
ITEM |
UNIT |
CK6136/6140 |
|
|
Max Swing over bed |
MM |
360/400 |
|
|
Max Swing over cross slide |
MM |
220 |
|
|
Max work length |
MM |
600/850 |
|
|
Max. Z axis Travel |
MM |
750/1000 |
|
|
Max X axis Travel |
MM |
250 |
|
|
Spindle bore |
MM |
60 |
|
|
Spindle nose |
|
A2-6 |
|
|
Spindle speed range |
RPM |
100-2500 |
|
|
Spindle type |
|
|
|
|
Bed width |
MM |
330 |
|
|
x/z fast feed |
MM/MIN |
|
|
|
x/z cutting travel speed |
MM/MIN |
|
|
|
Number of tool turret |
|
4/6/8 |
|
|
Tool shank type |
MM |
20*20 |
|
|
MM |
X≤0.010 Z≤0.015 |
|
|
|
Repeatability Positioning accuracy |
MM |
X≤0.0075 Z≤0.010 |
|
|
Min unit set |
MM |
0.001 |
|
|
roundness |
MM |
≤0.007 |
|
|
Diameter uniformity |
MM |
≤0.03(legth.300) |
|
|
Flatness |
MM |
≤0.02(dia.300) |
|
|
Surface Roughness (Steel) |
UM |
RA1.6 |
|
|
Dia. of tailstock sleeve |
MM |
60 |
|
|
Tailstock sleeve taper |
|
MT4 |
|
|
Max Tailstock sleeve travel |
MM |
140 |
|
|
Spidle dive motor power |
KW |
5.5 |
|
|
Coolant pump power |
W |
120 |
|
|
L x W ×H |
MM |
2150×1400×1600 |
|
|
Weight |
T |
1.7 |
|
product introduction
--
Why choose us
Community charging overall solution covers all application
Mature And Stable Technology
Support Customized Solutions
Complete After-sales Service
--
our certification
Authoritative Certifications, Stable and Reliable Quality.

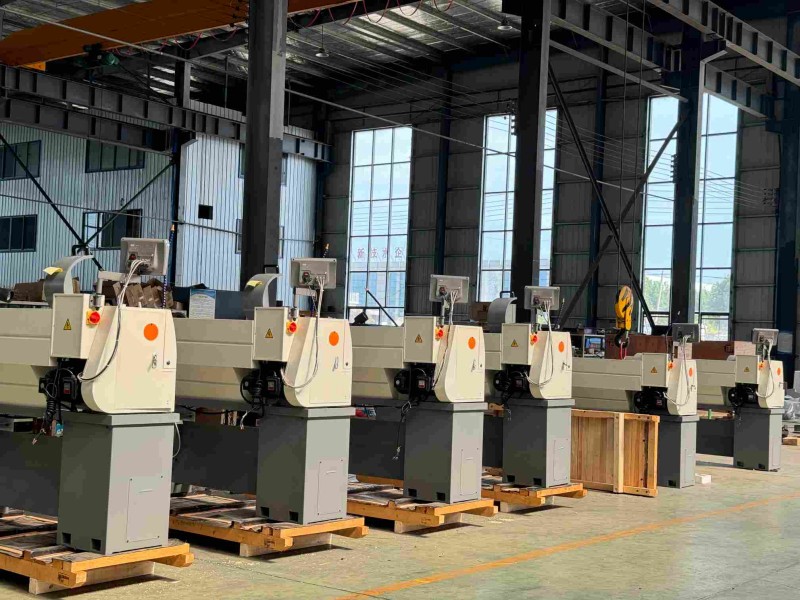

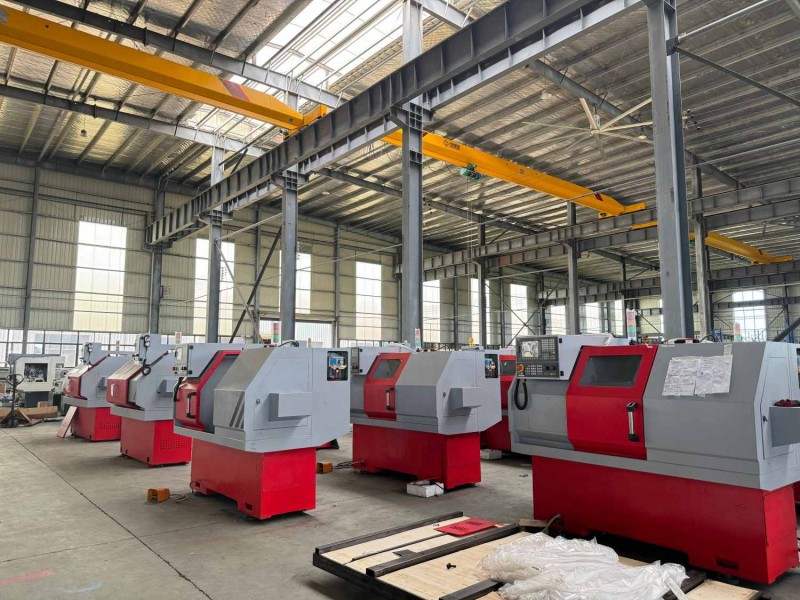

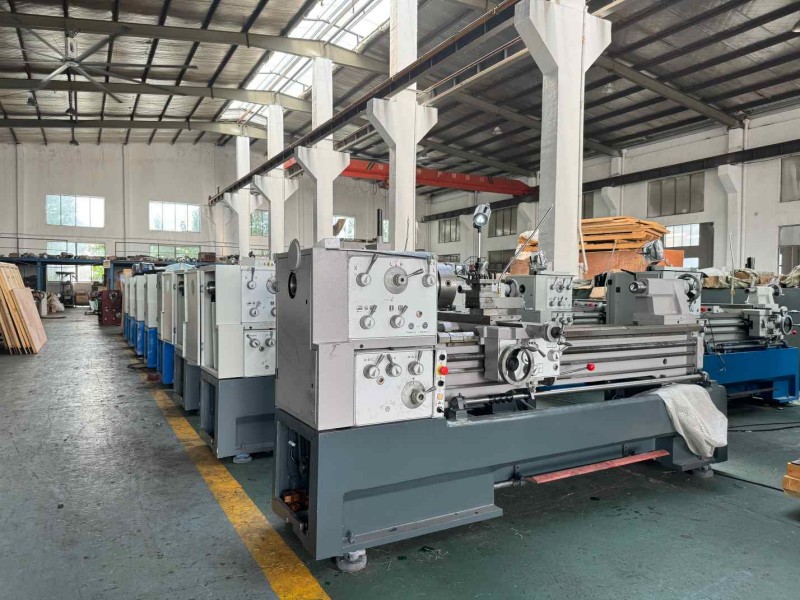

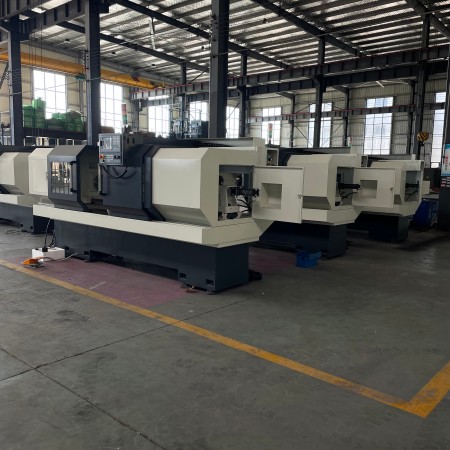

factory show
Professional Production Base, Strength in Precision Manufacturing

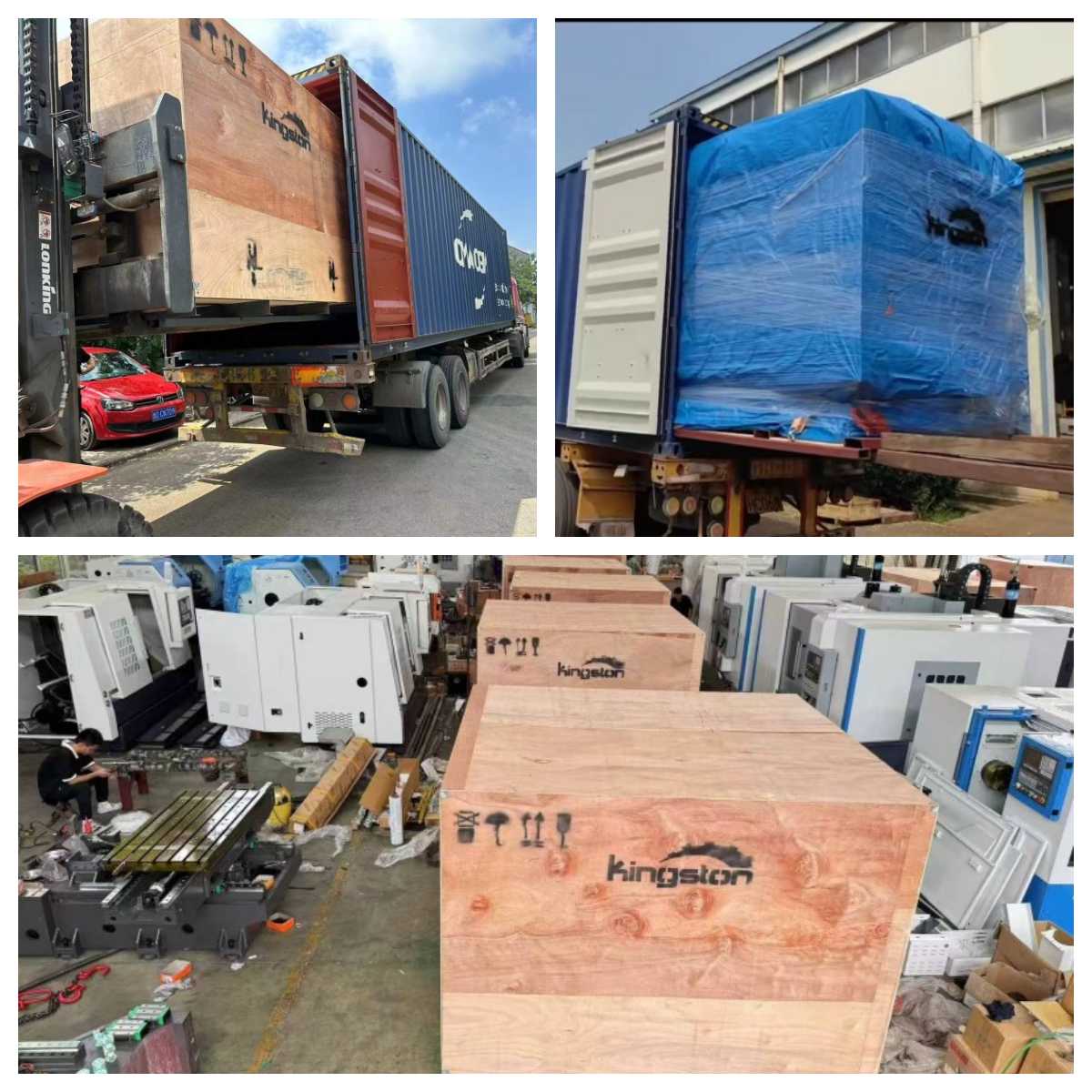

Packing and shipping
Safe & Professional Transportation, On-Time Delivery Guaranteed
FAQ

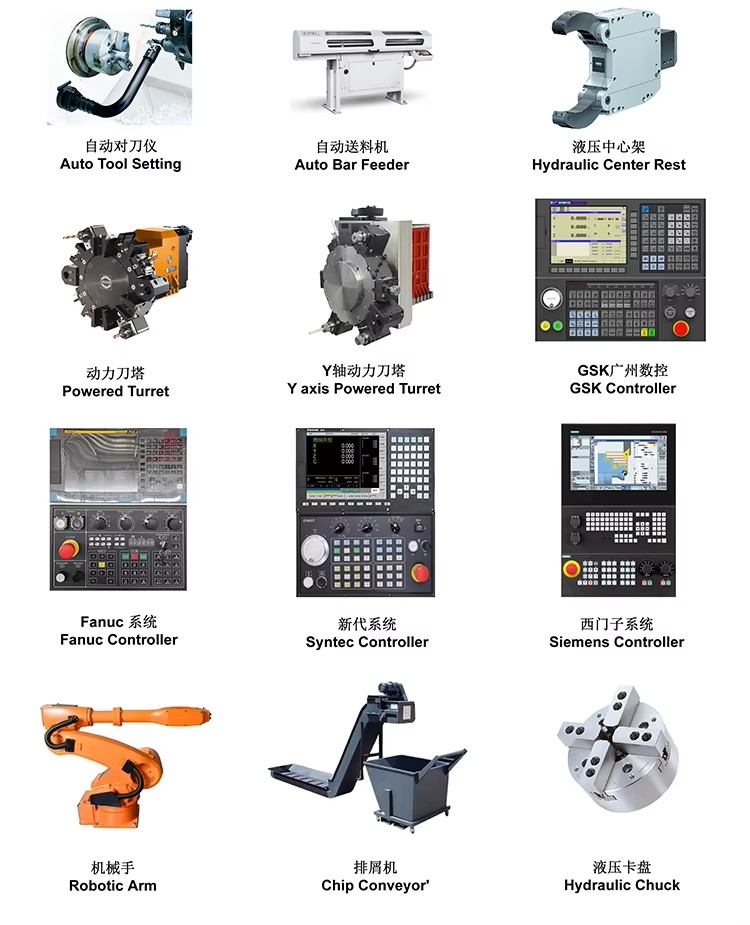

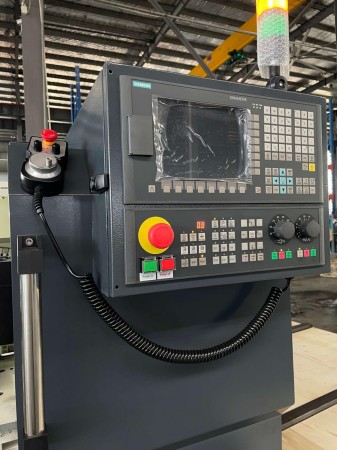

1.What CNC control systems are compatible?
These lathes are compatible with popular CNC controllers including Siemens, Fanuc, GSK, KND, and other standard systems. Please specify your preference when ordering.
2.What materials can these lathes machine?
The CK6132 and CK6140 can machine steel, stainless steel, cast iron, aluminum, brass, copper, and various plastics. Their wide spindle speed range (100-2500 rpm) allows optimal cutting parameters for different materials.
3.How long is the warranty period of this product?
We provide one-year warranty for the industrial universal lathe.
4.What is the MOQ and delivery time of the lathe?
MOQ 1 set, delivery in 40 working days after advance payment.
5.What is the spindle bore size?
Both models come with a standard 52mm spindle bore, with an optional 60mm spindle bore available for machining larger diameter bar stock.
