CNC Horizontal Milling Machine with ISO40 Spindle XLK6030CL

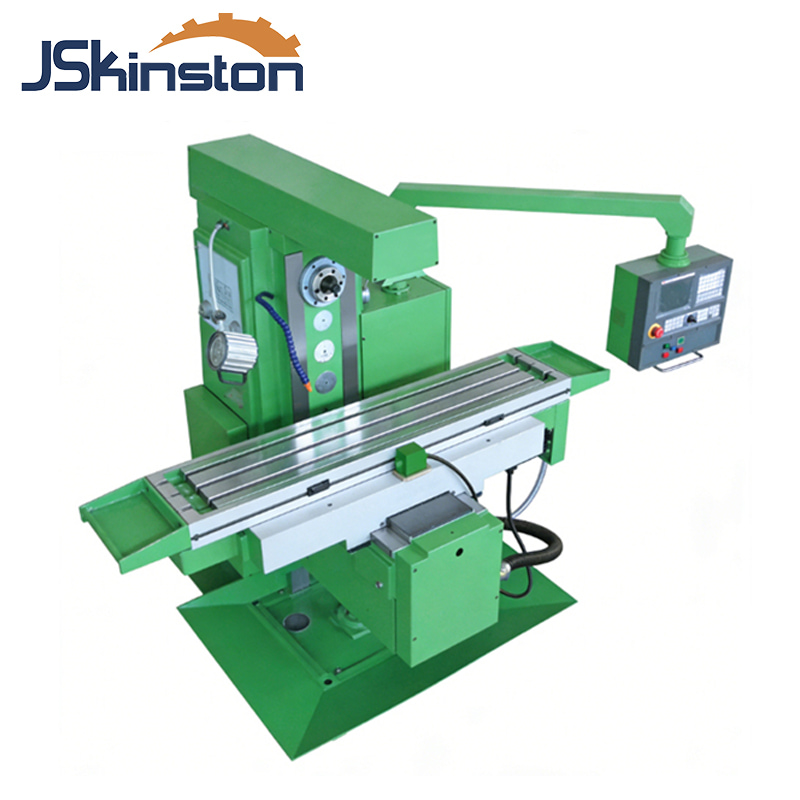

Name: CNC Horizontal Milling Machine with ISO40 Spindle XLK6030CL
Availability: InStock

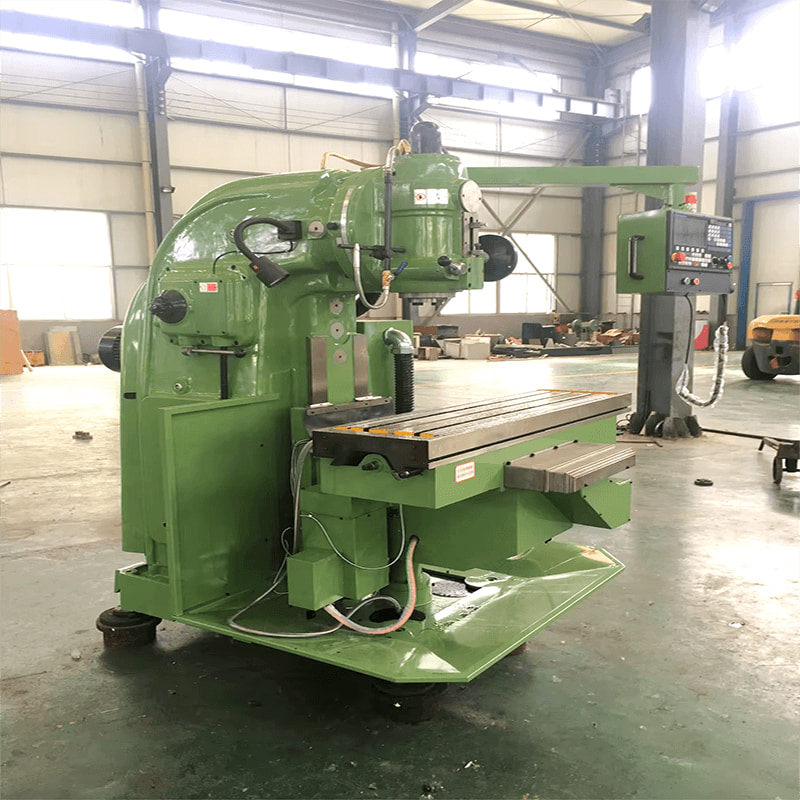

XLK6030CL is a compact economic CNC horizontal milling machine. It is designed for small precision workpieces with reliable CNC performance.The XLK6030CL is a compact CNC horizontal milling machine with an ISO40 spindle and 1370×300 mm table. It offers full CNC capability in a small footprint, perfect for precision shops and labs.

الطلب (الحد الأدنى للكمية) :
1
منشأ المنتج :
China
لون :
Customized
ميناء الشحن :
Qingdao
مهلة :
30
وزن :
1850Kg

استفسر الآن

Compact CNC Horizontal Milling Machine for Small Workpieces

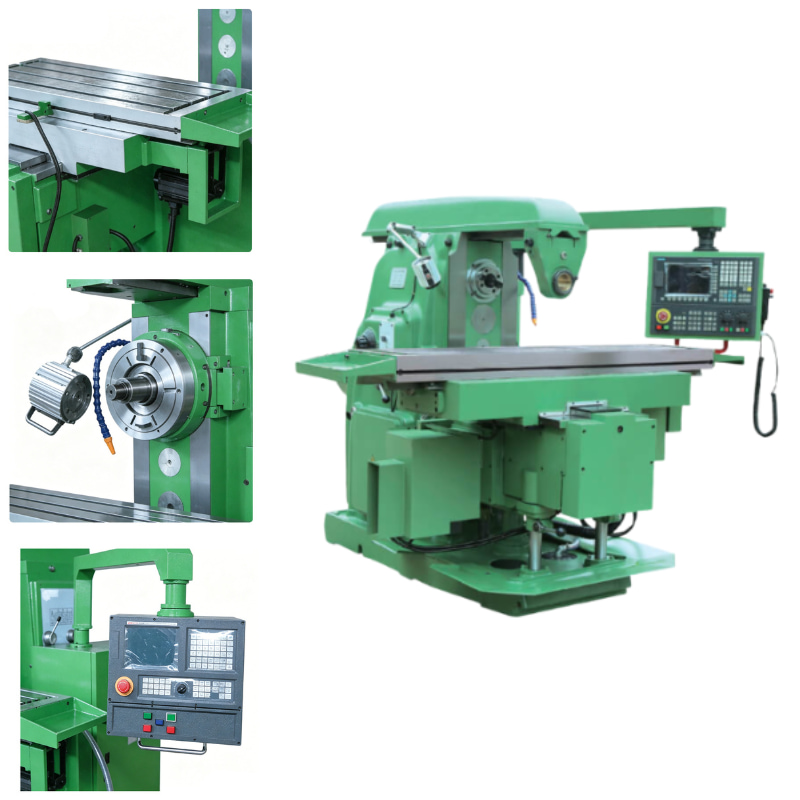

Extended Travel Universal Milling Machine

1.Compact design: Dimensions 1850 × 1760 × 1800 mm, net weight 1850 kg, suitable for precision machining workshops with limited space.

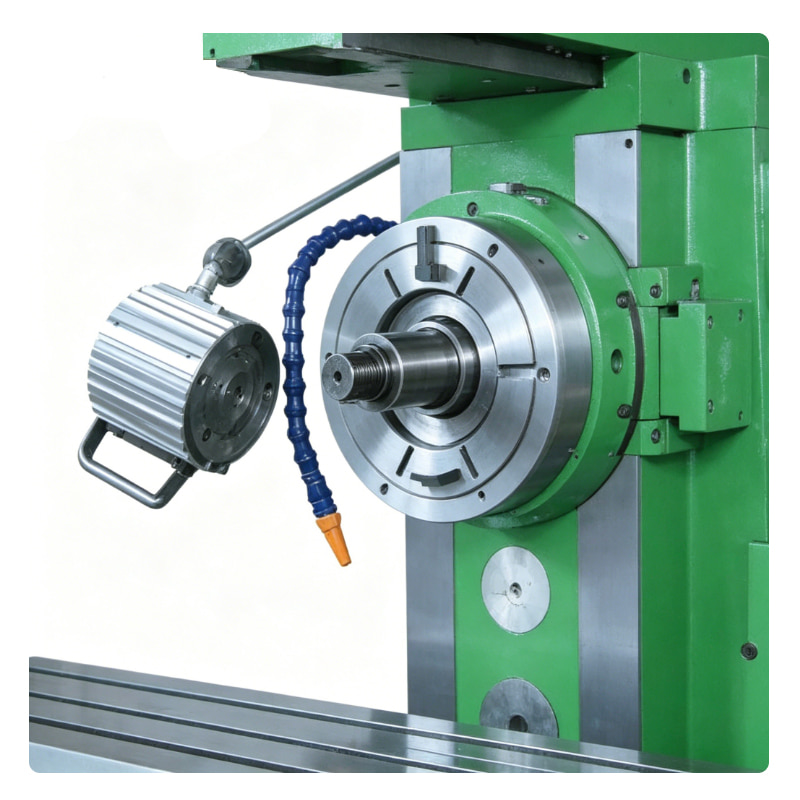

2.ISO 40 spindle: Speed 35–1500 rpm, 3 kW spindle motor, suitable for machining small to medium-sized parts.

3.High-Speed Rapid Traverse: XY axis rapid traverse 4000 mm/min, Z-axis 3000 mm/min, reducing set-up time.

4.Fourth-Axis Expansion: Reserved interface for retrofitting a CNC indexing head.

specification

Specification	Unit	XLK6030
Spindle hole taper	一	7:24 ISO40
Distance between spindle and table surface	mm	75-475
Distance from spindle axis to arm	mm	155

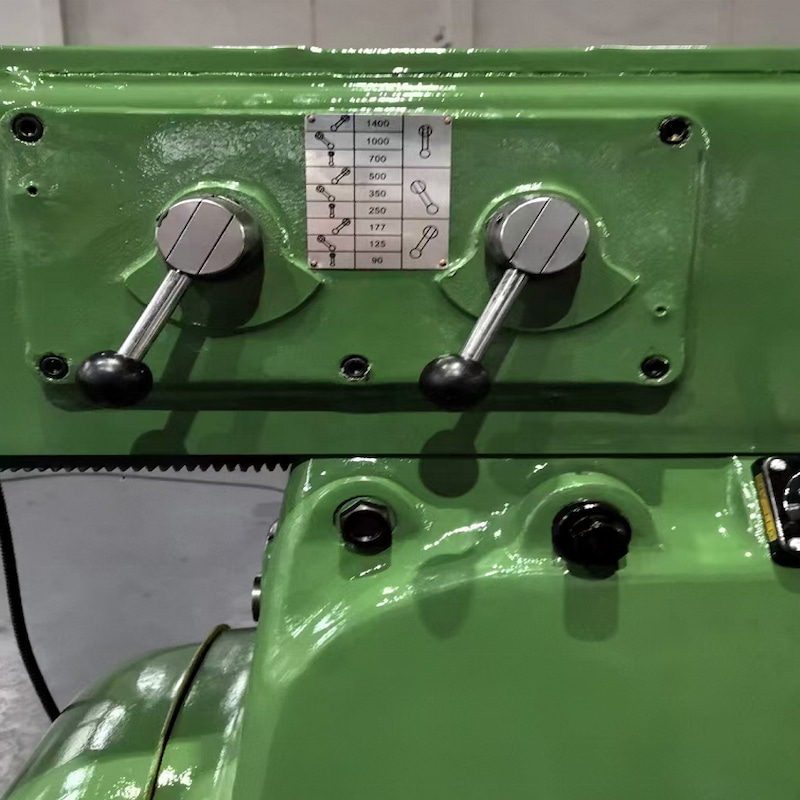

Spindle speed range	r/min	12steps 35-150
Arm travel	mm	一

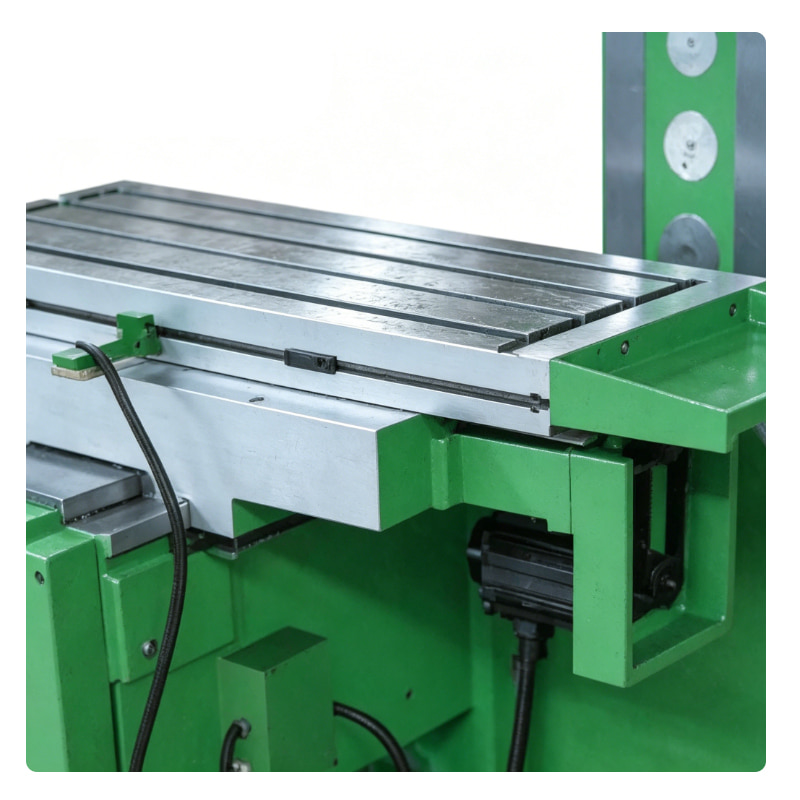

Table size	mm	1370×300
Table travel(XY/Z)	mm	820/30D/400
Table rapid feed speed	mm/min	4000/4000/3000
T-slot(No./width/pitch)	mm	3/14/80
Main motor power	kw	3
Torque of×/Y/Zaxis AC servo motor	N.m	10/10/15
Overall size(LxW×H)	mm	1850×1760x1800
Net weight	kg	1850

Product Advantages

Compact CNC Horizontal Mill
Overall dimensions 2294×1770×1610 mm, net weight 2650 kg, ideal for small workshops, laboratories, and educational institutions.
ISO40 Spindle Flexible & Economical
Spindle speed 35-1500 rpm, main motor 3 kW – lower tooling cost, suitable for small to medium parts.

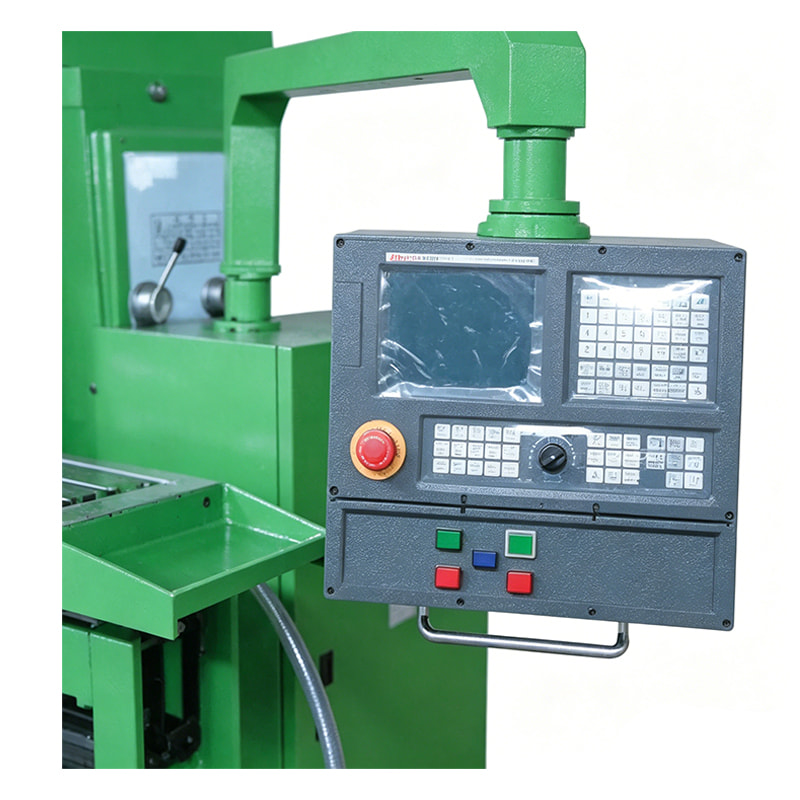

Siemens 808D Easy Operation
With electronic handwheel – switchable between manual and auto, ideal for teaching, R&D, and small batch production.
High-Speed Rapid Traverse
XY rapids 4000 mm/min, Z rapid 3000 mm/min – short idle time, high efficiency.
Automatic Timed Lubrication
Dividing head, rotary table, DRO, ballscrews available – upgrade as needed to meet different precision requirements.
