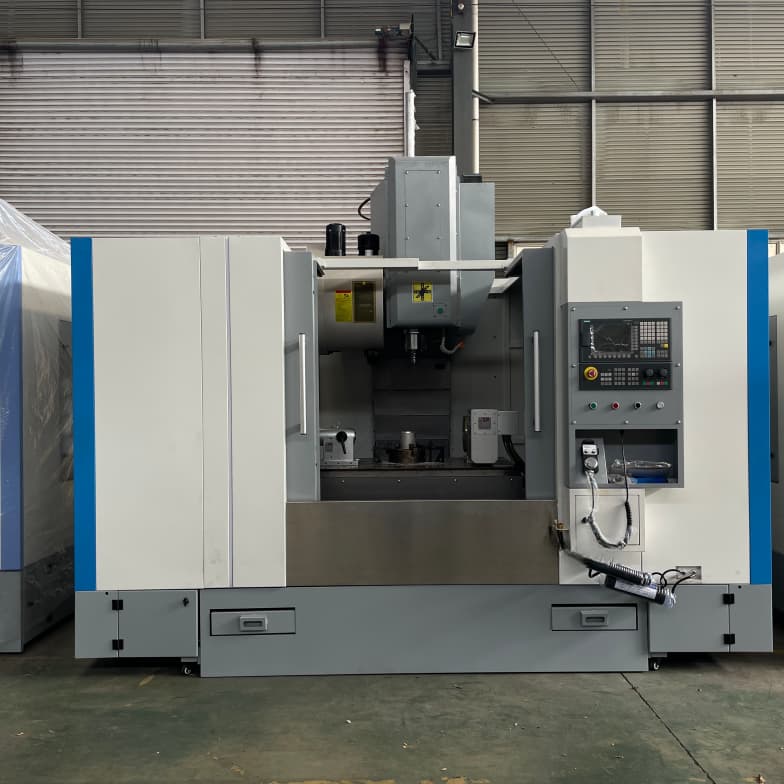

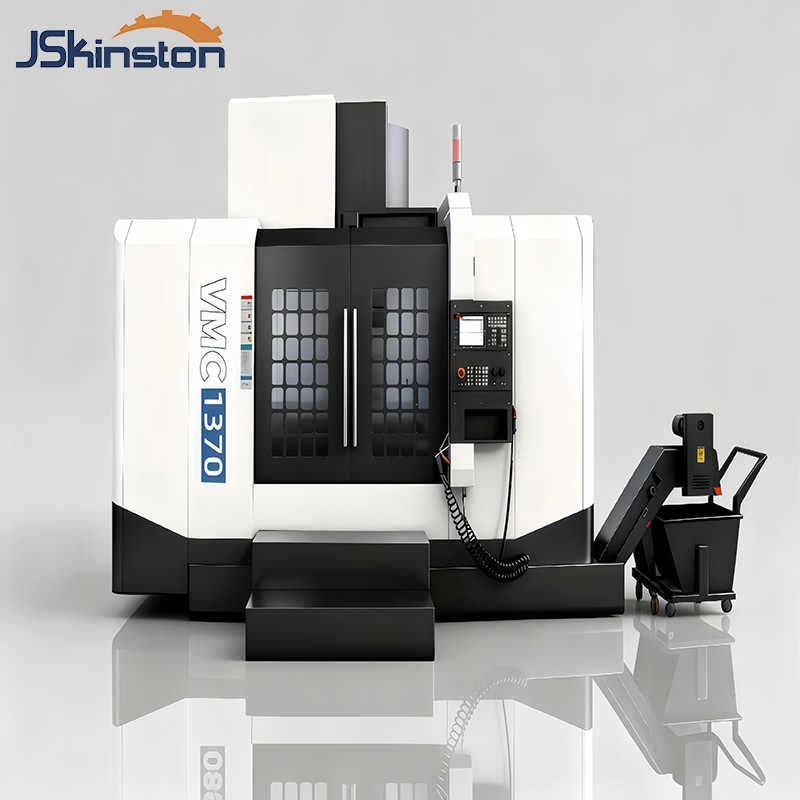

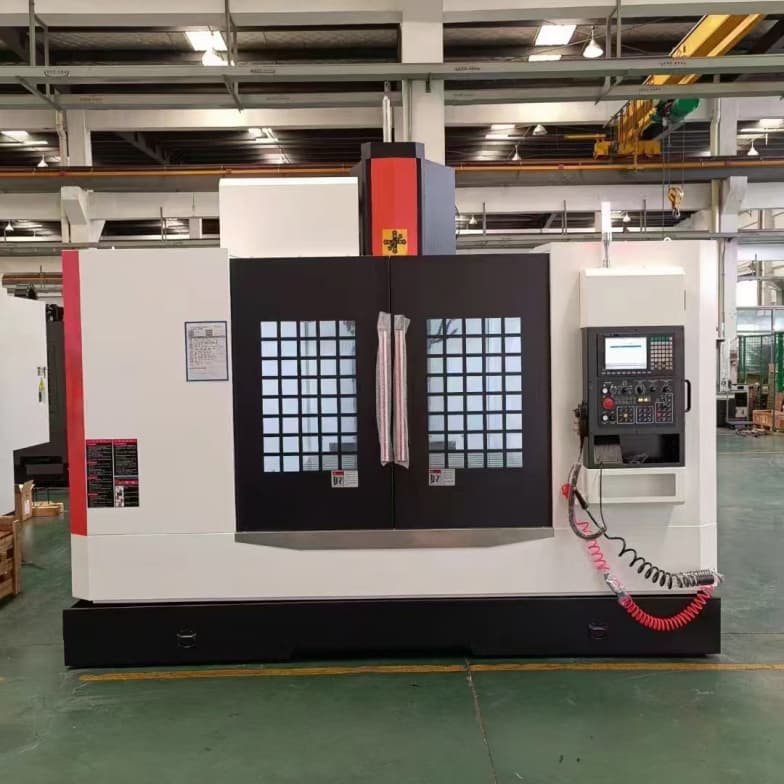

Engineering Workshops Professional 5 Axis VMC1370 Machine Center
Unlike conventional machining equipment, the VMC1370 integrates advanced transmission technology and intelligent control systems to achieve a perfect balance between processing efficiency and precision. Its optimized structural design effectively reduces vibration interference during heavy-load operation, while the upgraded lubrication and heat dissipation systems ensure stable long-term operation, making it an ideal choice for large-scale batch production and high-demand industrial manufacturing scenarios.
|
Specification
|
Unit
|
VMC1370
|
|
Table size
|
mm
|
1500*700
|
|
T Slots
|
-
|
5-22-135
|
|
Max table load
|
Kg
|
1000
|
|
Table travel X
|
mm
|
1300
|
|
Table travel Y
|
mm
|
700
|
|
Table travel Z
|
mm
|
700
|
|
Spindle nose to table surface
|
mm
|
160-860
|
|
Spindle center to column surface
|
mm
|
740
|
|
Spindle speed range and driving method
|
rpm
|
8000 belt driving
|
|
Spindle taper
|
/
|
BT40
(opt. BT50)
|
|
Spindle diameter
|
mm
|
150
|
|
Cutting feed speed
|
mm/min
|
1-10000
|
|
X/Y/Z Rapid feed speed
|
m/min
|
20/20/18
|
|
Magazine capacity
|
T
|
24
|
|
Magazine type
|
|
Disc type
|
|
Max tool diameter(No adjacent tool)
|
mm
|
Φ80/150
|
|
Controller
|
|
Fanuc 0i MF 3B
|
|
Spindle motor power
|
Kw
|
11/15
(Opt. 15/18.5kw)
|
|
Positioning accuracy(JIS standard)
|
mm
|
±0.005
|
|
Repeatability Positioning accuracy(JIS standard)
|
mm
|
±0.004
|
|
Net weight
|
kg
|
11500
|
|
Overall size
|
mm
|
4780*3530*3150
|
Product Advantages
1. Ultra-Large Stroke Design
With an expanded stroke beyond ordinary models, it easily accommodates extra-large workpieces, complex parts and large molds for large-scale production.
2.Heavy-Duty High-Rigidity Structure
Thickened cast iron bed with multi-channel stress relief ensures strong stability and resists deformation under long-term heavy load.
3. High-Torque Powerful Cutting Capacity
High-power spindle and upgraded drive deliver strong cutting force for smooth processing of high-hardness materials.
4. Intelligent Control & Easy Operation
Advanced CNC system supports one-click adjustment and fault self-diagnosis, lowering operation threshold and human error.
5. Comprehensive Protection & Low Maintenance
Fully enclosed protection and automatic lubrication reduce wear, simplifying daily upkeep and operational costs.
JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD
Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.
-
Mature And Stable Technology
With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
-
Support Customized Solutions
We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
-
Complete After-sales Service
We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service.Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.
Our certification
Authoritative Certifications, Stable and Reliable Quality.

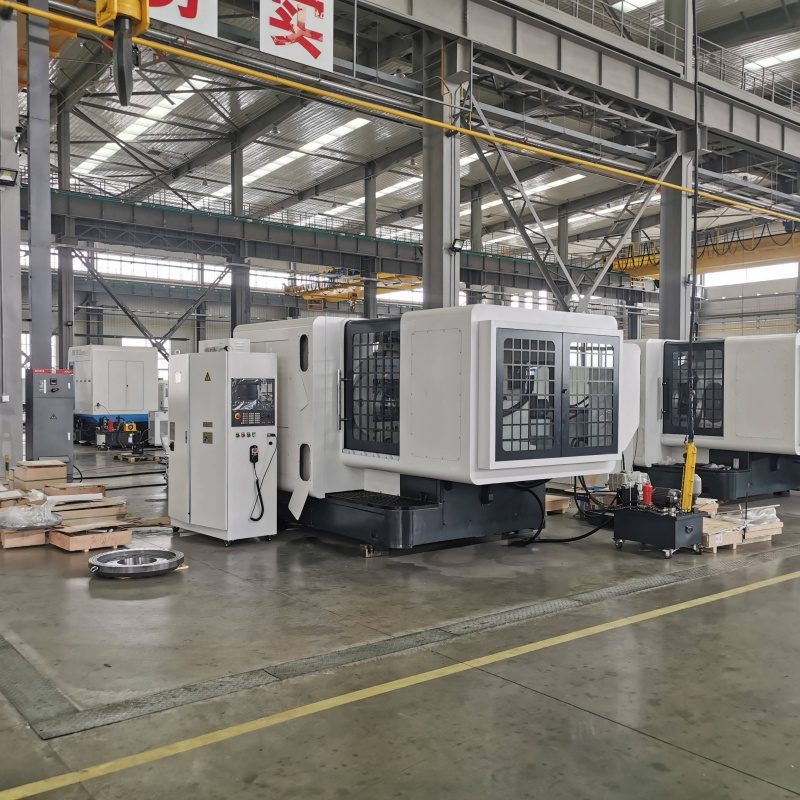

factory show

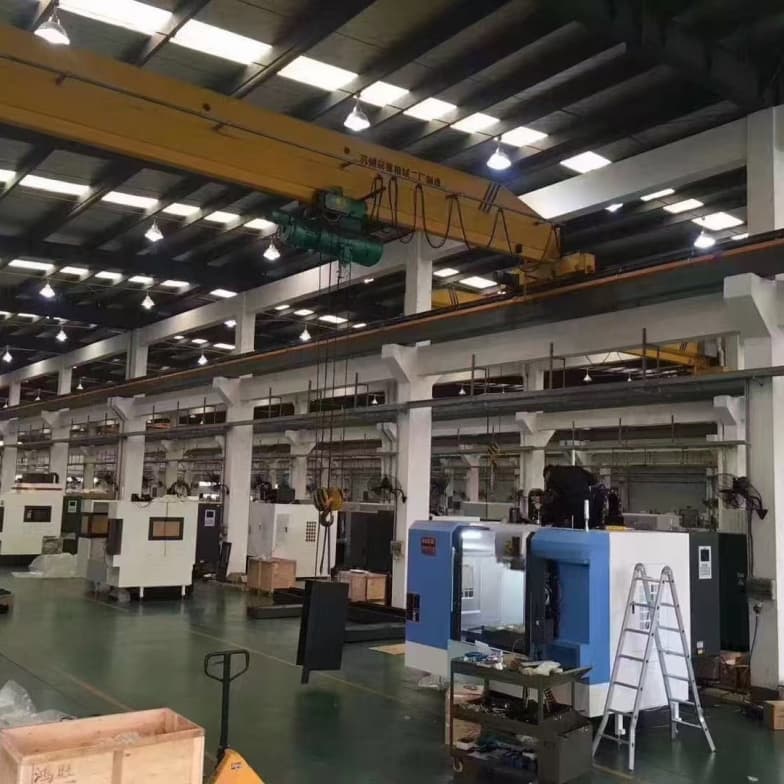

Professional Production Base, Strength in Precision Manufacturing
Safe & Professional Transportation, On-Time Delivery Guaranteed
Q: What are the travel specifications of VMC1370?
A: VMC1370 features large X/Y/Z working travel of 1300×700×700mm, with a wider worktable to process large workpieces and mold parts.
Q: Is VMC1370 suitable for heavy duty cutting?
A: Yes. It adopts H300 heavy cast iron frame and widened rail span, matched with BT50 high-torque spindle, ideal for heavy cutting and long-term mold processing.
Q: What load capacity can the VMC1370 worktable bear?
A: The reinforced worktable supports maximum load up to 1000kg, ensuring stable operation when processing heavy metal workpieces.
Q: What are the core structural advantages of VMC1370?
A: It adopts 55mm wide heavy-duty roller guide rails and four-rail support design, providing stronger rigidity, better shock resistance and stable cutting performance.

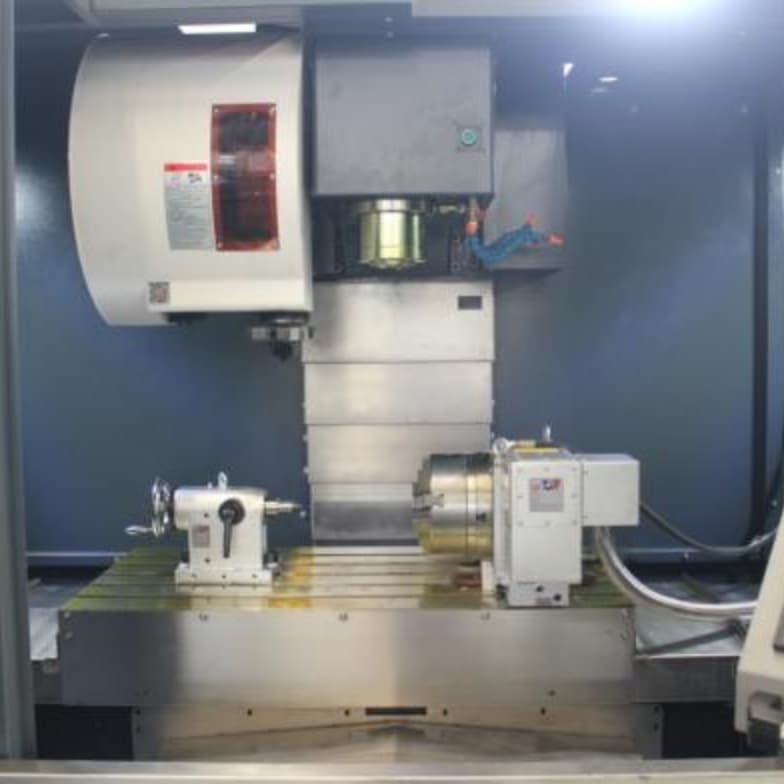

Q: Can VMC1370 be equipped with multi-axis function?
A: This model supports 3-axis standard configuration and optional 4-axis or 5-axis upgrade, meeting complex multi-angle machining demands for various industries。
