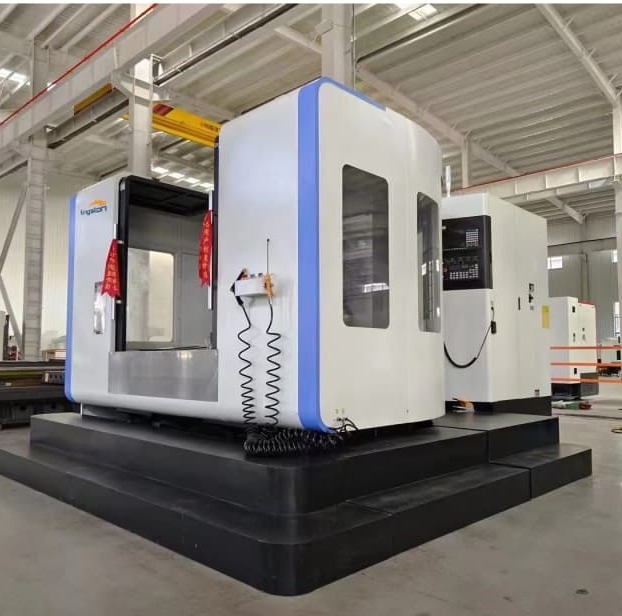

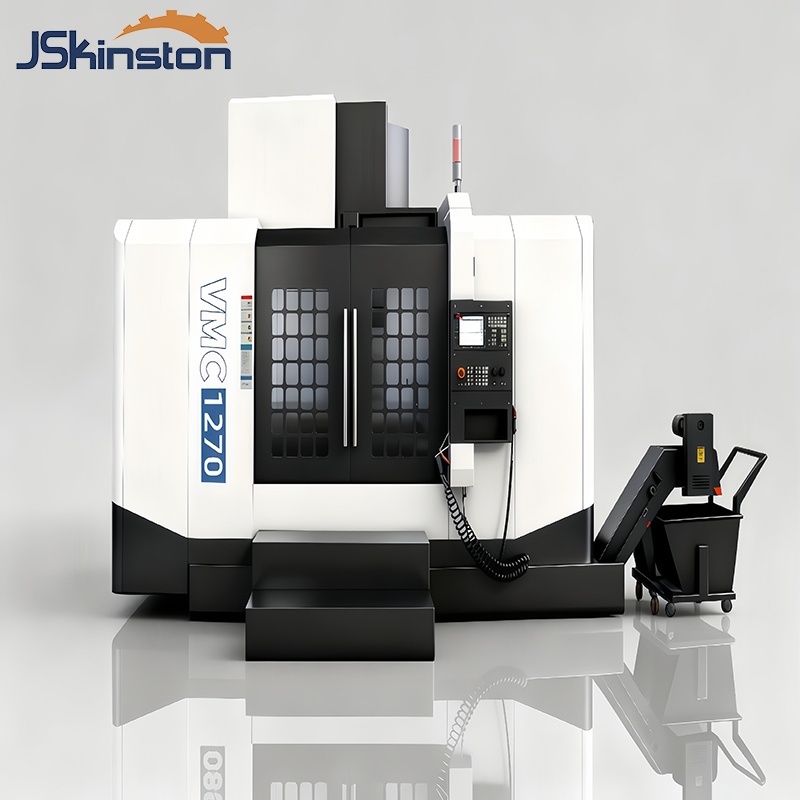

Multi Axis Linkage VMC1270 Efficient Metal Cnc Machining Center

Multi Axis Linkage VMC1270 Efficient Metal Cnc Machining Center

As a high-efficiency and high-expandability industrial processing equipment, VMC1270 focuses on long-term continuous production and comprehensive cost control. It is equipped with high-torque spindle and high-performance drive system, with strong cutting power and fast response speed. The automatic centralized lubrication system and optimized chip removal structure reduce daily maintenance pressure, while the fully enclosed protective design ensures safe operation and clean workshop environment. It is widely used in mold industry, engineering machinery, heavy hardware and large non-standard parts processing, helping enterprises realize mass production and upgrade processing capacity.



Specification	Unit	VMC1270
Table size	mm	1360*700
T Slots	-	5-18-122
Max table load	Kg	1000
Table travel X	mm	1200
Table travel Y	mm	700
Table travel Z	mm	600
Spindle nose to table surface	mm	125-725
Spindle center to column surface	mm	785
Spindle speed range and driving method	rpm	8000 belt driving
Spindle taper	/	BT40
Spindle diameter	mm	150
Cutting feed speed	mm/min	1-10000
X/Y/Z Rapid feed speed	m/min	20/20/18
Magazine capacity	T	24
Magazine type		Disc type
Max tool diameter(No adjacent tool)	mm	Φ80/150
Controller		Fanuc 0i mf 3B
Spindle motor power	Kw	11/15 (opt. 15/18.5KW)
Positioning accuracy(JIS standard)	mm	±0.005
Repeatability Positioning accuracy(JIS standard)	mm	±0.003
Net weight	kg	8000
Overall size	mm	4250*2650*2450



Product Advantages

•

  Ultra-Large Stroke Design

  Featuring ultra-large working stroke and heavy-load bearing capacity, it fully meets the forming processing needs of various extra-large workpieces and complex molds.
•

  High-Strength Body

  Reinforced overall structure and scientific stress treatment effectively weaken cutting vibration, ensuring stable precision and smooth workpiece surface for long-term operation.
•

  High-Torque Cutting

  High-torque power configuration delivers powerful cutting performance, easily processing hard alloy, cast iron, steel and other high-hardness materials.
•

  Easy Maintenance

  Optimized circulating lubrication and professional chip removal system reduce part wear, extend service life and lower later maintenance costs.
•

  Flexible Expansion

  Compatible with mainstream international CNC systems and reserved expansion interfaces, it can be customized with multiple functions to adapt to diversified industrial production scenarios.

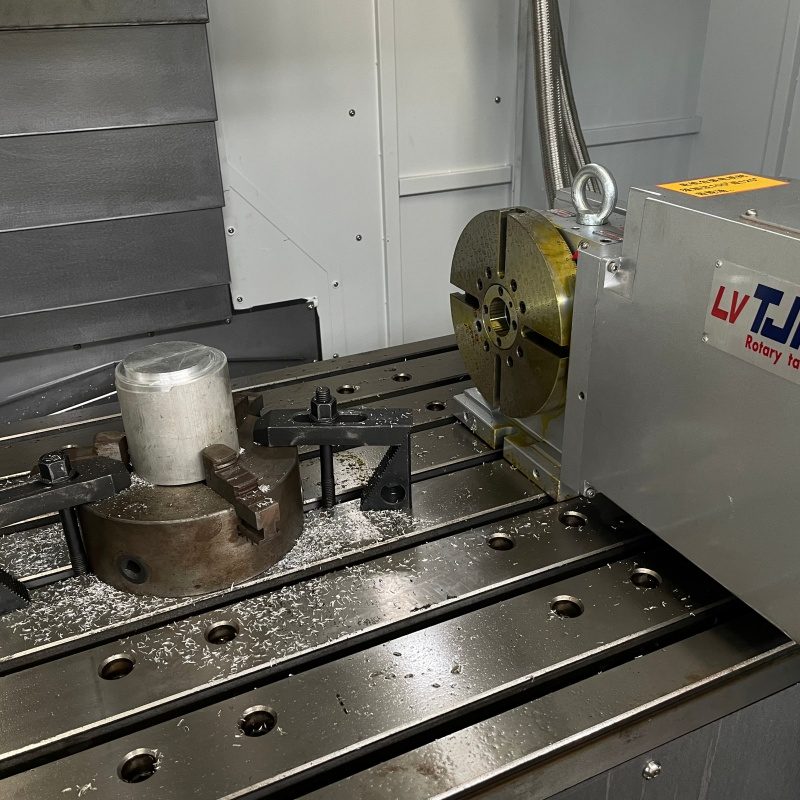

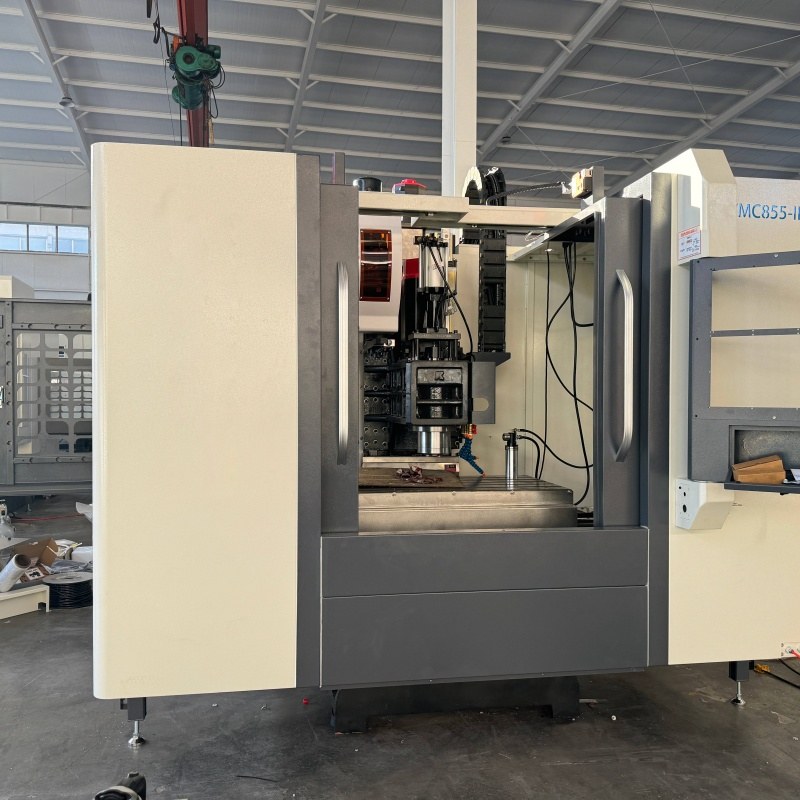

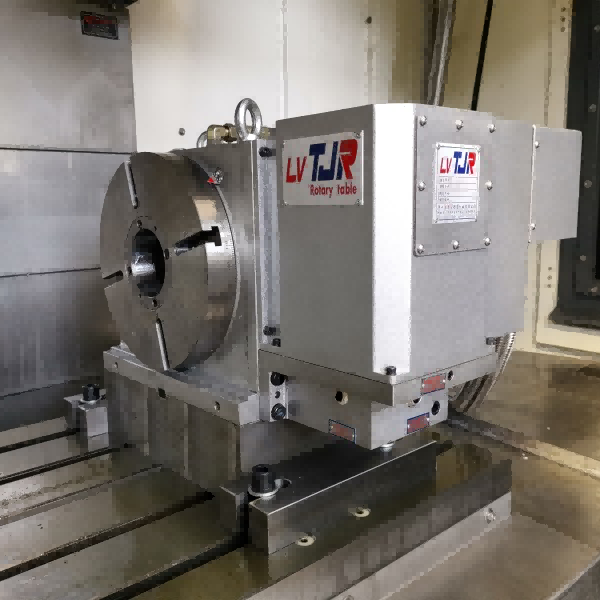

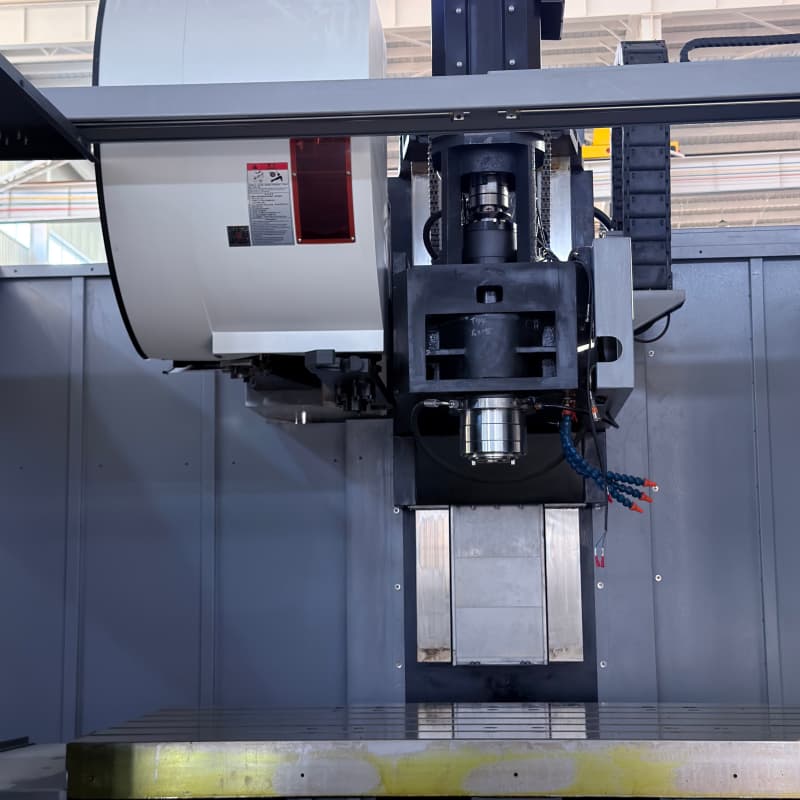

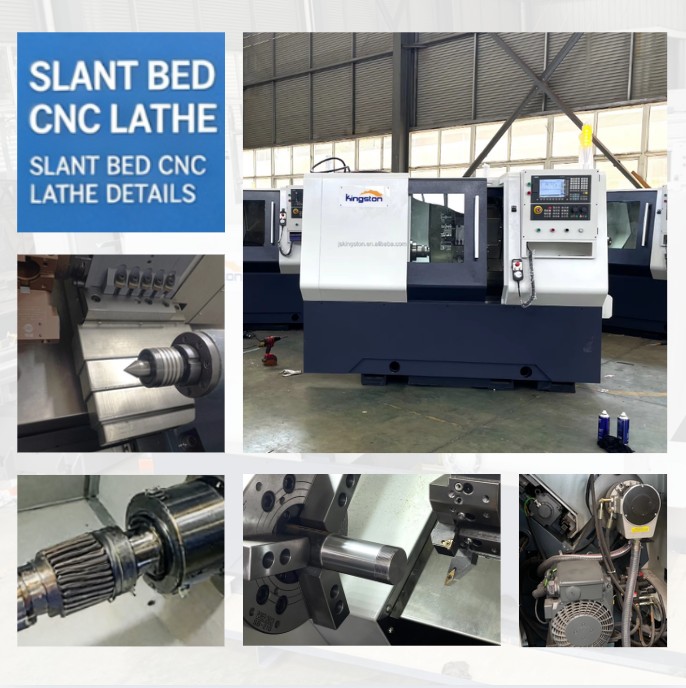

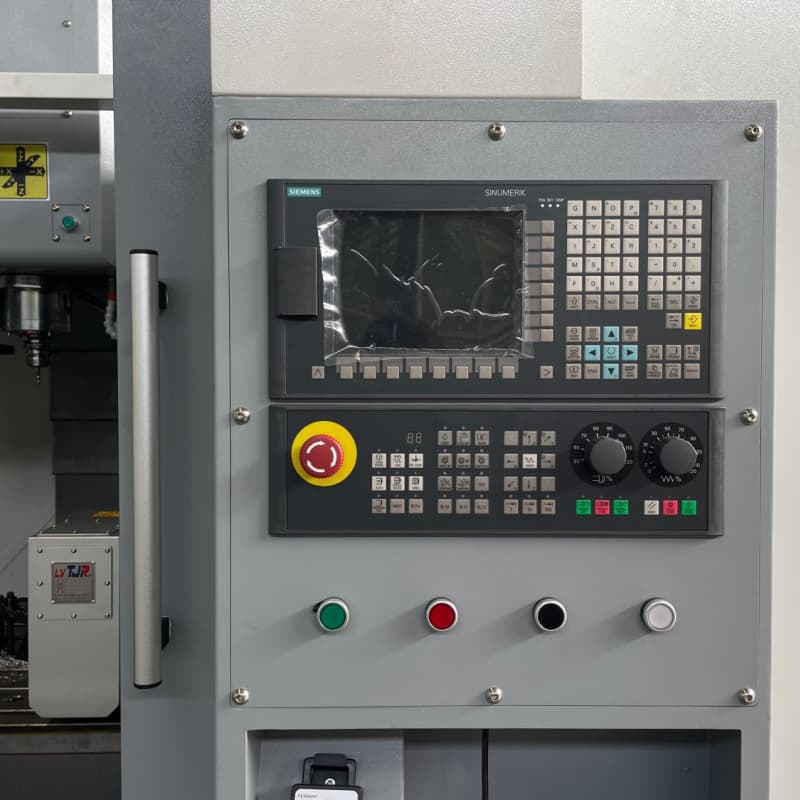

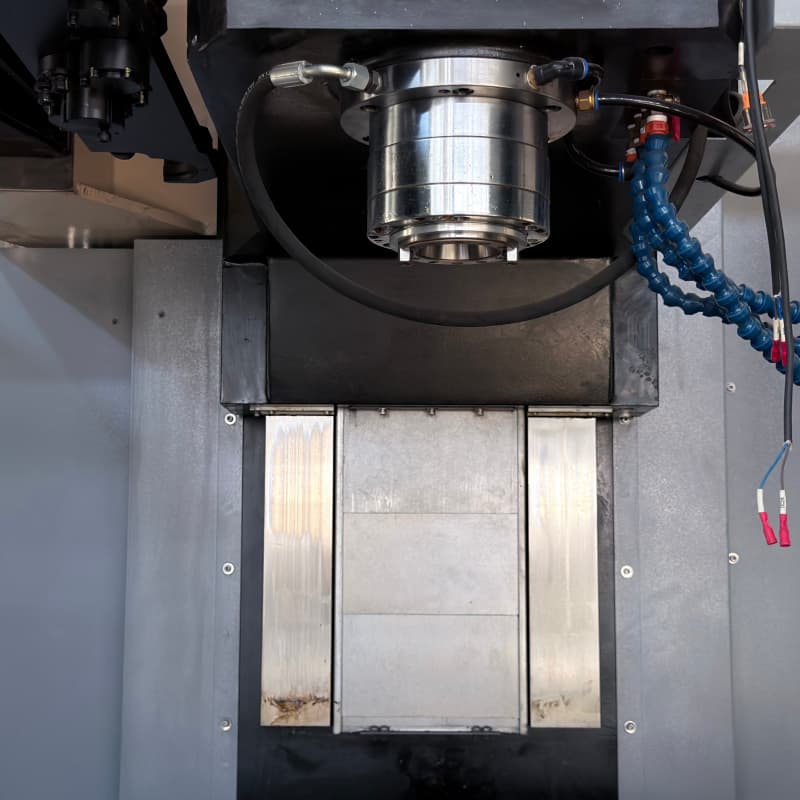

Details presentation

JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD

Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose u

• Mature And Stable Technology

  With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
• Support Customized Solutions

  We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
• Complete After-sales Service

  We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service.Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

Our certification

Authoritative Certifications, Stable and Reliable Quality.

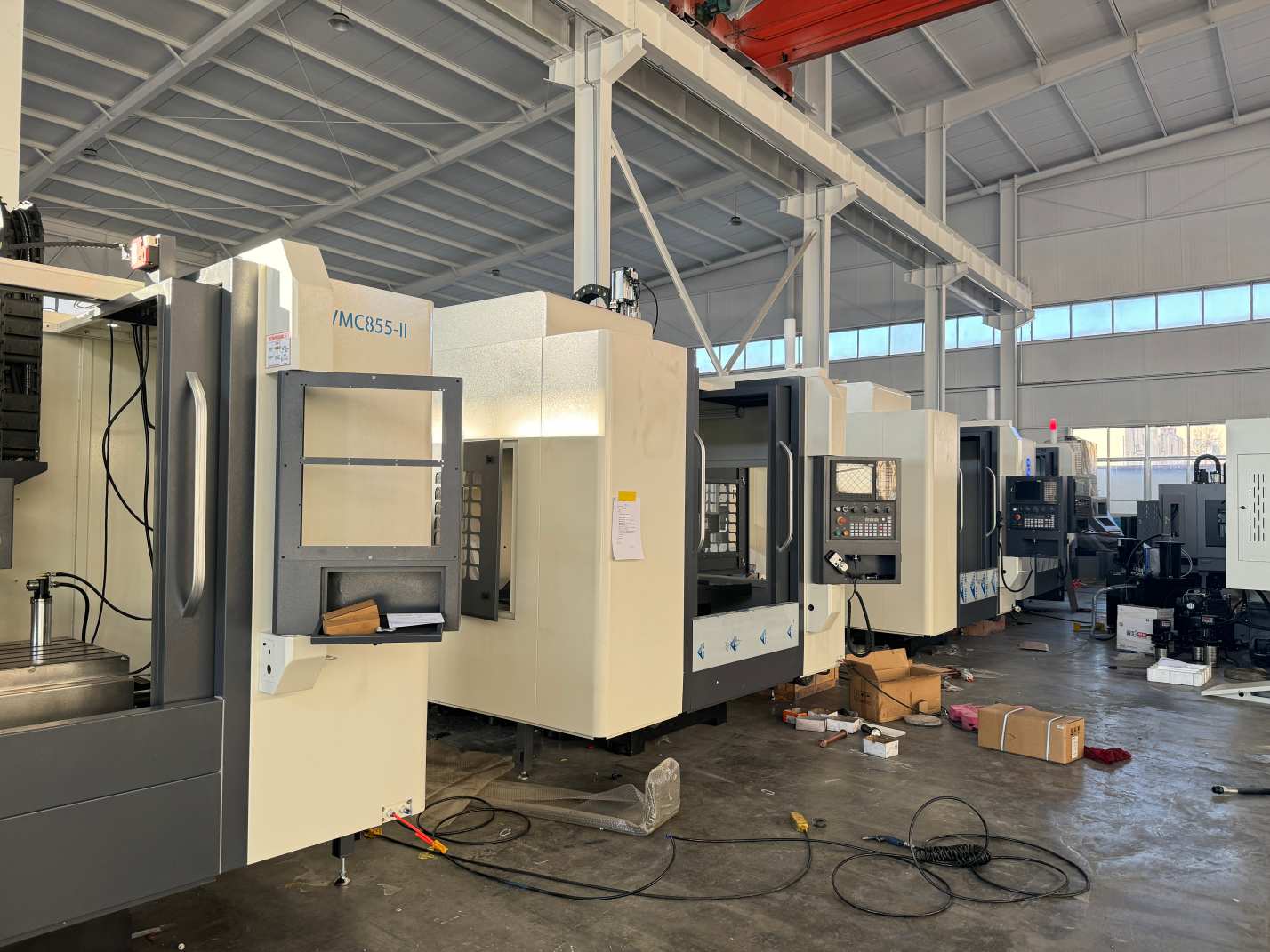

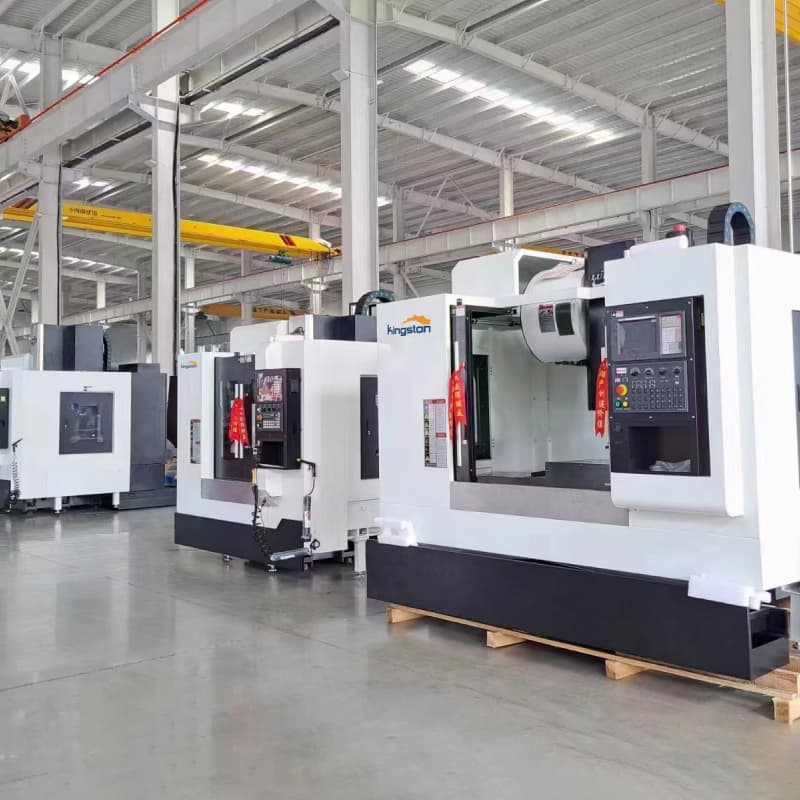

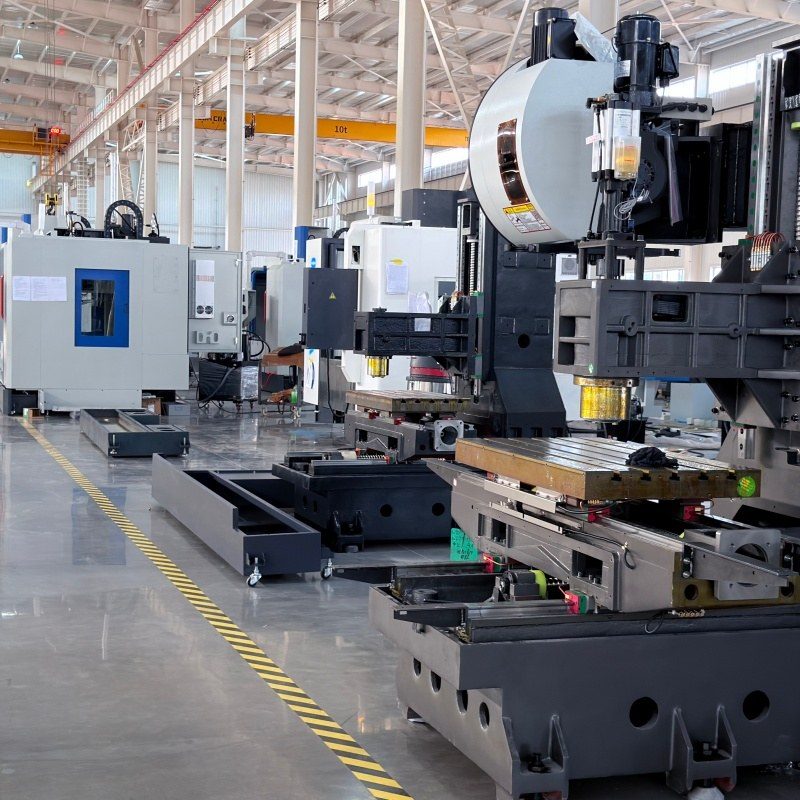

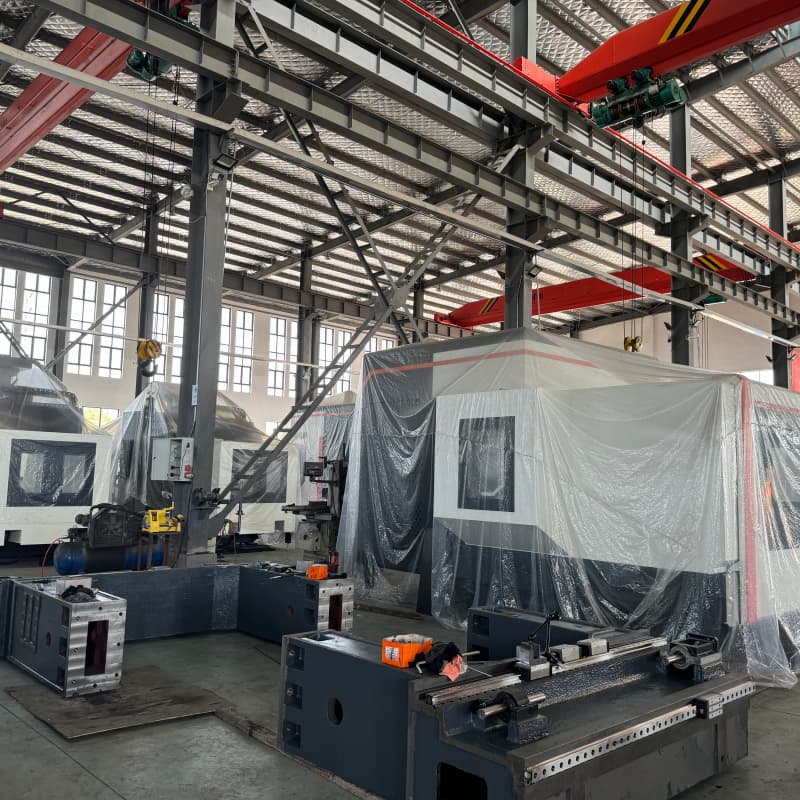

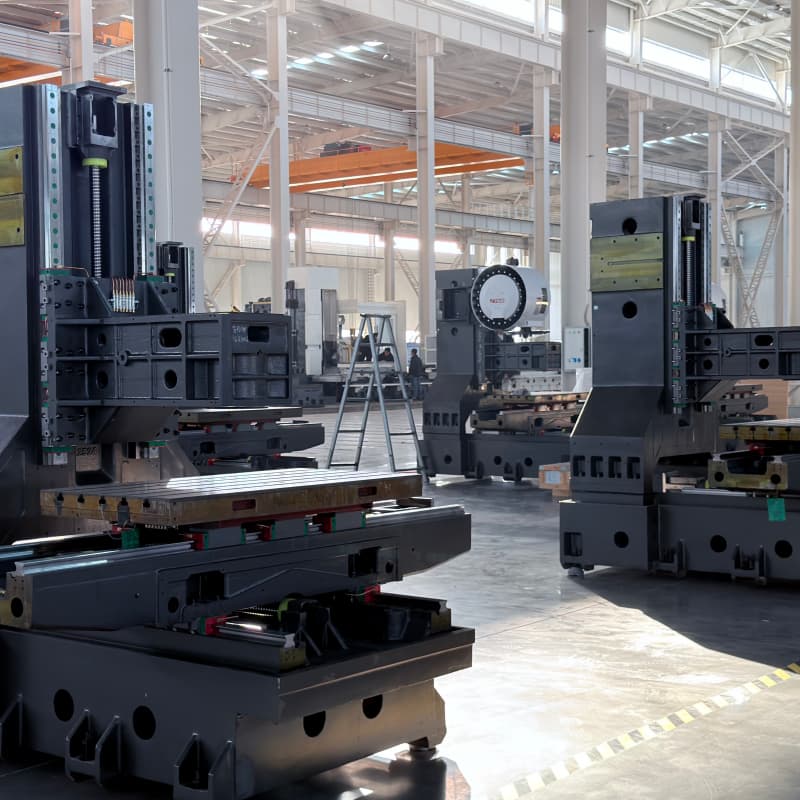

factory show

Professional Production Base, Strength in Precision Manufacturing



Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed

• Q: Does this machine support heavy cutting work?



  A: With high rigid body structure and high power spindle, it performs well in heavy cutting, roughing and long time continuous processing.

• Q: Is daily operation and maintenance simple?



  A: Humanized structural design makes cleaning, lubrication and parts inspection easy, saving your daily maintenance time.

• Q: What is the advantage of your ball screw and guide rail?



  A: High precision imported guide rail and pre-tensioned ball screw reduce friction, ensure smooth movement and lasting accuracy.

• Q: Can it process complex parts and molds?



  A: Excellent dynamic response and stable control system meet the processing needs of complex curved surfaces and precision workpieces.

• Q: Do you provide spare parts supply after long-term purchase?

  A: We supply original spare parts permanently, ensuring the machine runs stably with low replacement cost.
