New Precision Universal Ram Milling Machine X6432/A

New Precision Universal Ram Milling Machine X6432/A

The X6432/A is a heavy-duty ram milling machine designed for large workpieces and complex machining operations. Featuring a robust movable ram that extends horizontally and a swiveling milling head, this machine delivers exceptional reach and angle-cutting capability for tool rooms, maintenance shops, mold-making facilities, and heavy equipment repair centers. The "A" series represents an advanced configuration with enhanced rigidity and precision compared to standard models.

الطلب (الحد الأدنى للكمية) :
1
منشأ المنتج :
China
لون :
Customized
ميناء الشحن :
Qingdao
مهلة :
30
وزن :
3000Kg

استفسر الآن

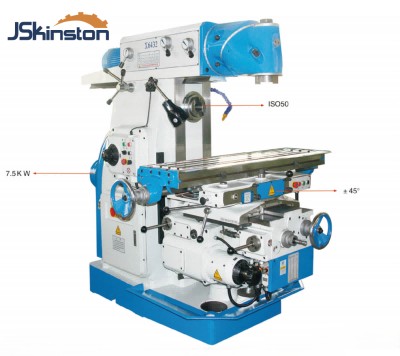

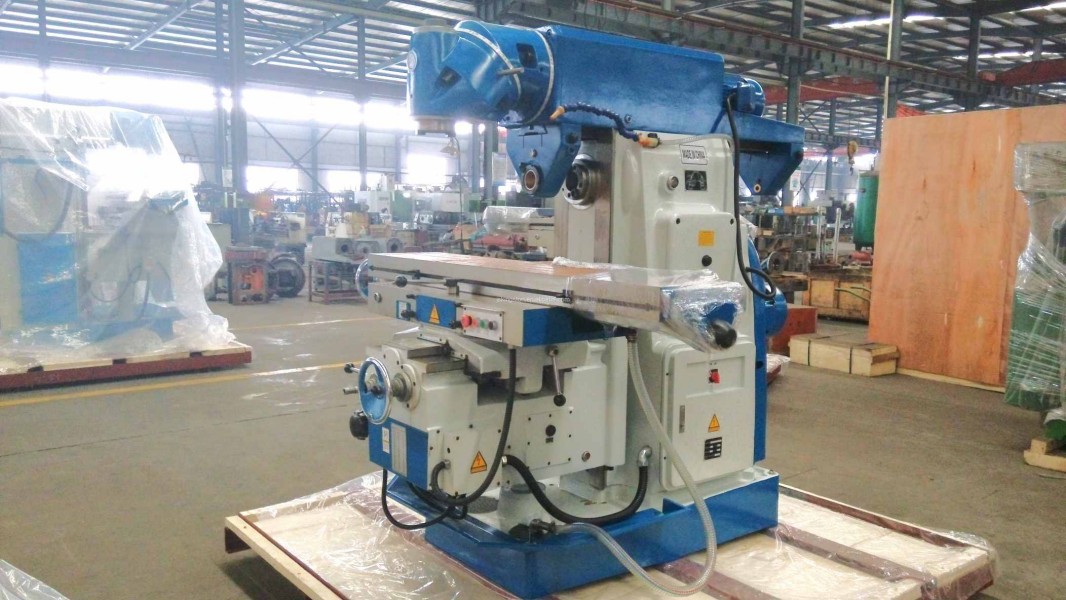

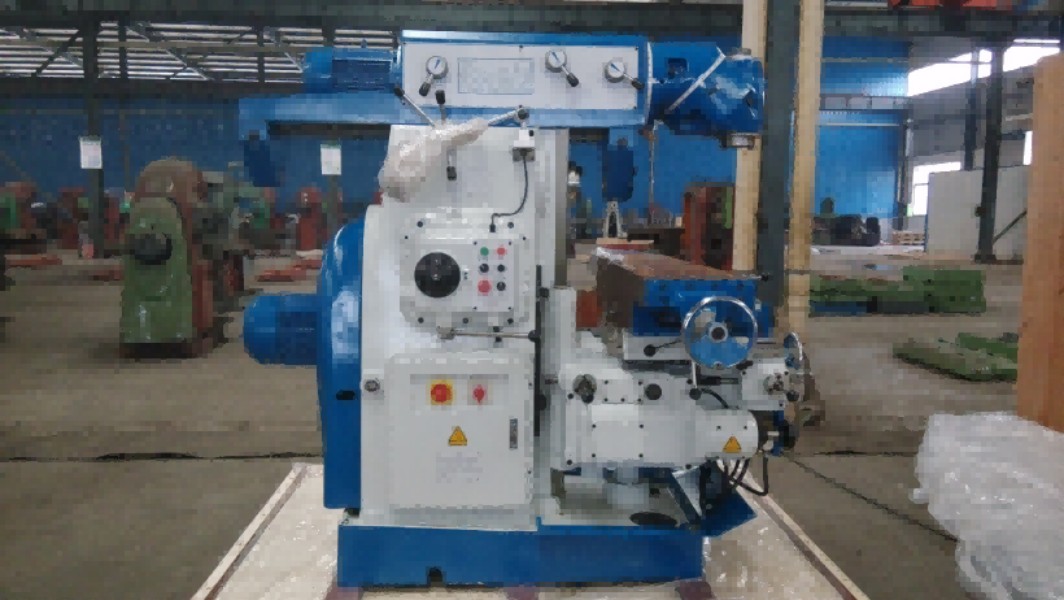

X6432/A Ram Milling Machine

The X6432/A ram milling machine delivers the power, reach, and versatility needed for large, complex machining jobs. With its heavy-duty construction, extended ram travel, and swiveling head, it handles workpieces that standard knee mills cannot accommodate. Perfect for tool rooms, mold shops, and heavy repair facilities.

Applications:

1.Mold and die making: Large mold bases, fixture plates.

2.Heavy equipment repair: Re-machining worn components.

3.Tool rooms: Jigs, fixtures, custom tooling.

4.Prototype development: Large one-off parts.

5.Maintenance facilities: Custom repair machining.

specification


Specification	Unit	X6432	X6432A
Table size	mm	320×1325	320×1600
Max Longitudinal travel(manual/auto)	mm	700/680	900/880
Max transverse travel(manual/auto)	mm	255/240
Max transverse vertical travel(manual/auto)	mm	320/300
Max rotary angle		±45°
T Slots(NWD)		3/18/70
Spindle hole taper	mm	7:24 ISO50
Distance of Horizontal spindle axis to table surface:	mm	30～350
Distance of table center to vertical spindle	mm	190～510
Distance of table center to vertical ways of column	mm	470～215
Distance of table center ram	mm	155
Speed steps		(V)12 (H)18
Spindle speed range	rpm	(V)60-1750(H)30-1500
Table feed steps		18
Table feed range Longitudinal	mm/min	23.5~1180
Table feed range cross	mm/min	23.5～1180
Table feed range vertical	mm/min	8~394
Table rapid moving speed Longitudinal/cross	mm/min□	2300
Table rapid moving speed vertical	mm/min□	770
Power of spindle	Kw	(V)4 (H)7.5
Spindle of motor range	rpm	1440
Feed motor	Kw	1.5
Feed of motor range	rpm	1440
Net Weight	Kg	2900	3000
Overall sizes	mm	2294×1770×1780	2294×2050×1780

Product Advantages

500mm Ram Travel
Extends spindle reach for oversized workpieces without repositioning heavy parts.

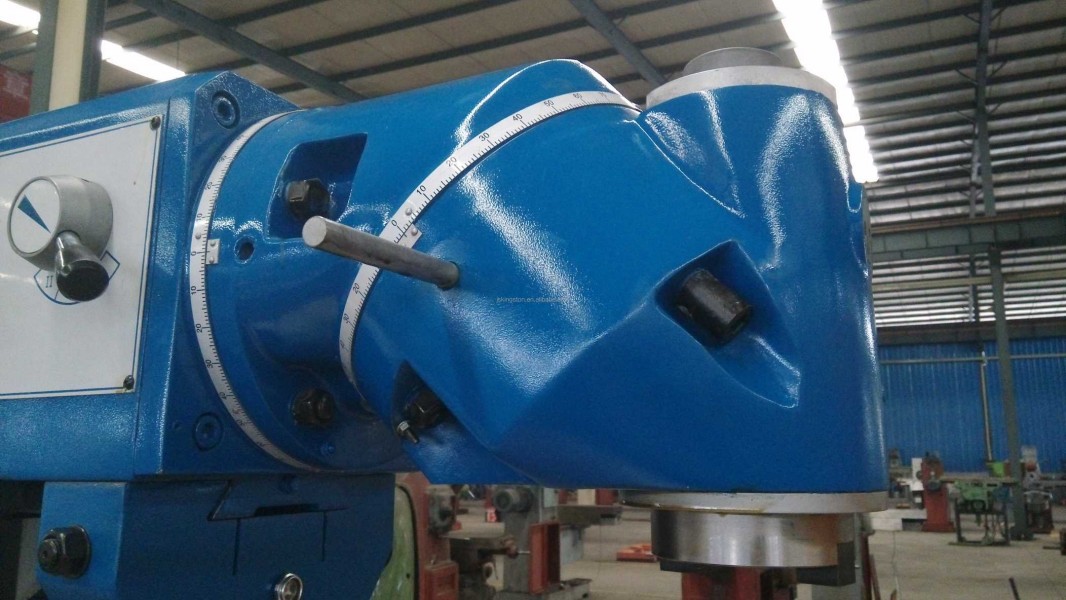

±90° Swiveling Head
Machines compound angles, dovetails, and inclined surfaces in a single setup, eliminating special fixtures.
NT40 Spindle Taper
Provides excellent rigidity and torque for heavy-duty cutting on steel, cast iron, and hard alloys.
12-Speed Gearbox (60-1800 rpm)
Wide speed range for optimal cutting from heavy roughing to precision finishing.
Heavy-Duty Construction
Ribbed cast iron structure absorbs vibration for smoother finishes and long-term accuracy.

JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD

Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose us

Mature And Stable Technology
With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
Support Customized Solutions
We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
Complete After-sales Service
We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service.Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

Our certification

Authoritative Certifications, Stable and Reliable Quality.

Lathes manufacturer

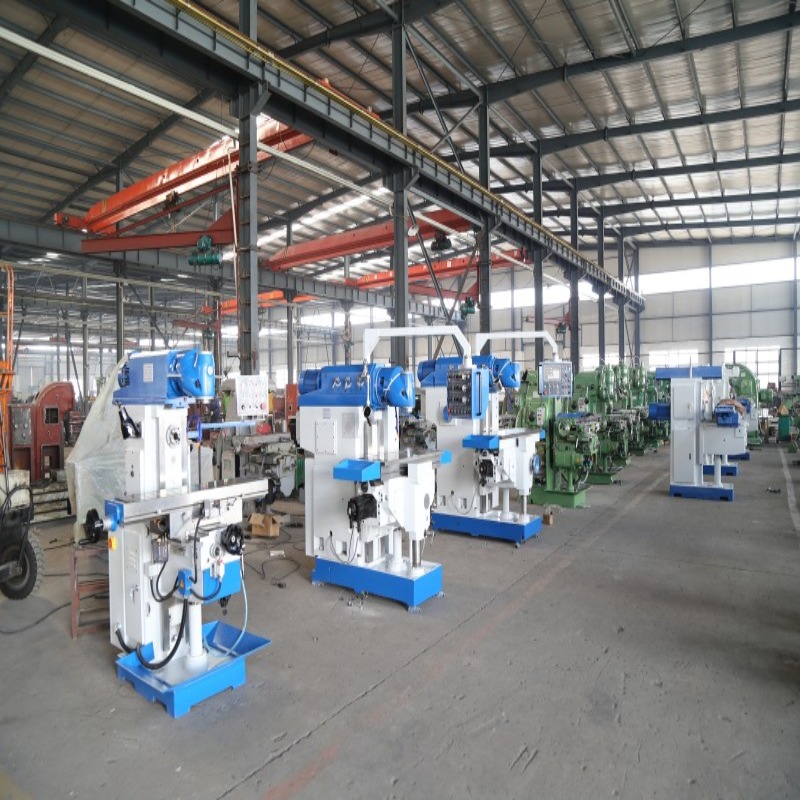

factory show

Professional Production Base, Strength in Precision Manufacturing

Industrial Ram Milling Machine with Auto Feed Multi‑Function Universal Milling Equipment High-quality lathe Vertical and Horizontal Milling Machine

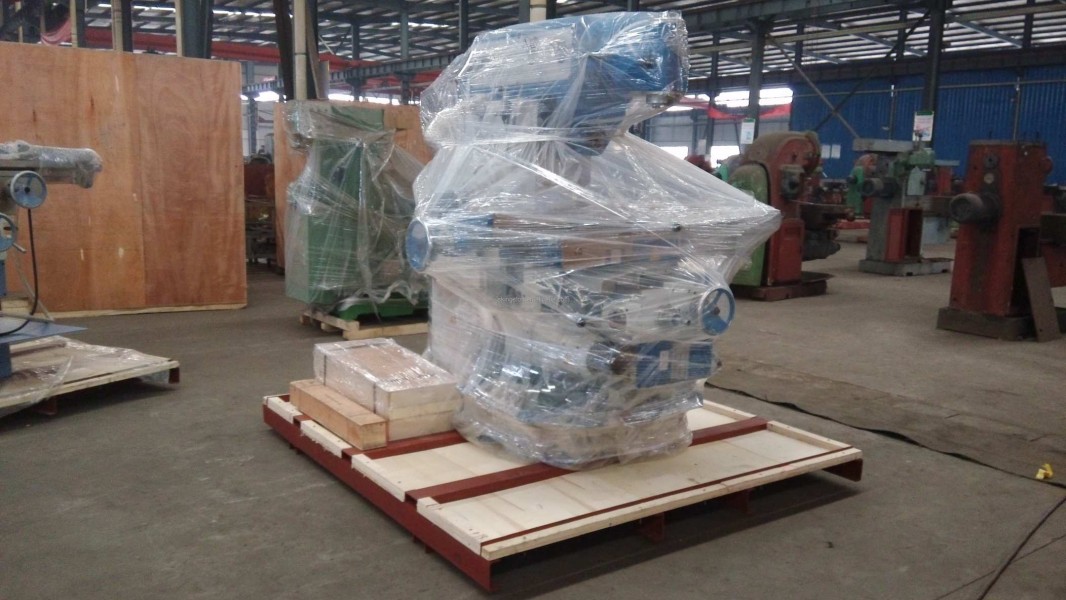

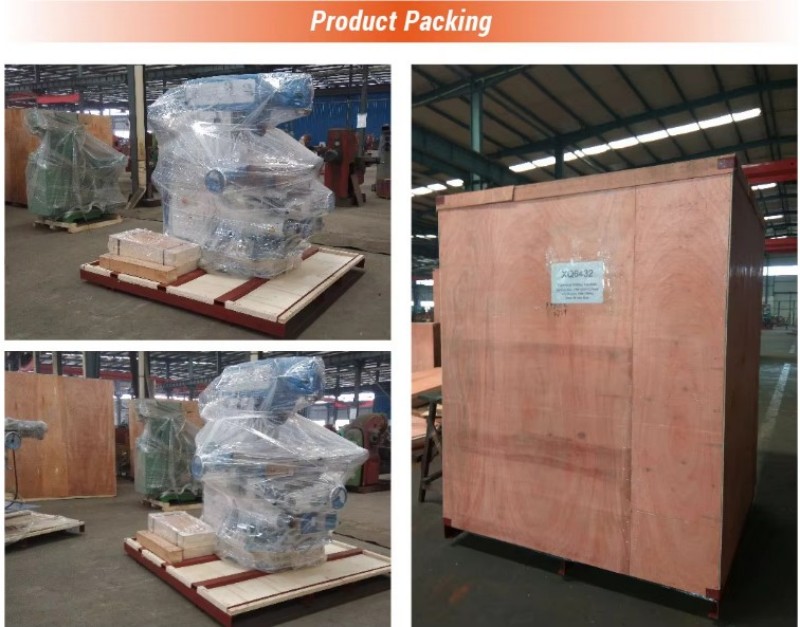

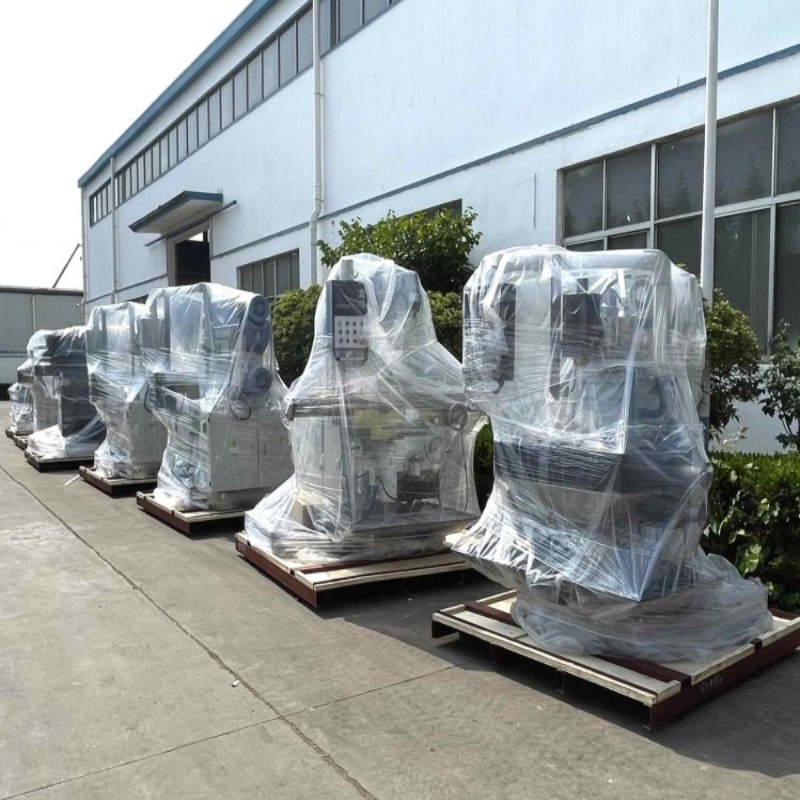

Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed

High Quality Universal Ram Milling Machine
Heavy machinery manufacturer

1. What is the maximum ram travel distance?

The X6432/A offers 500mm (19.7 inches) of horizontal ram travel, allowing the spindle to reach well beyond the table edges for oversized or awkwardly shaped workpieces.

2.What spindle taper does this machine use?

The X6432/A is equipped with an NT40 (ISO 40) spindle taper, providing excellent rigidity and torque for heavy-duty cutting on hard materials.

3.Can the milling head cut at angles?

Yes, the milling head swivels ±90° left and right, enabling compound angle cutting, dovetail machining, and inclined surfaces in a single setup without special fixtures.

4.What is the spindle speed range?

The spindle speed range is 60 to 1800 RPM across 12 steps, allowing operators to select optimal speeds for both heavy roughing and precision finishing.

5.What materials can the X6432/A machine?

The X6432/A can machine steel, stainless steel, cast iron, titanium, aluminum, and hard alloys thanks to its powerful 5.5 kW (7.5 HP) motor and rigid cast iron construction.
